SmokeFighter® Model D150E

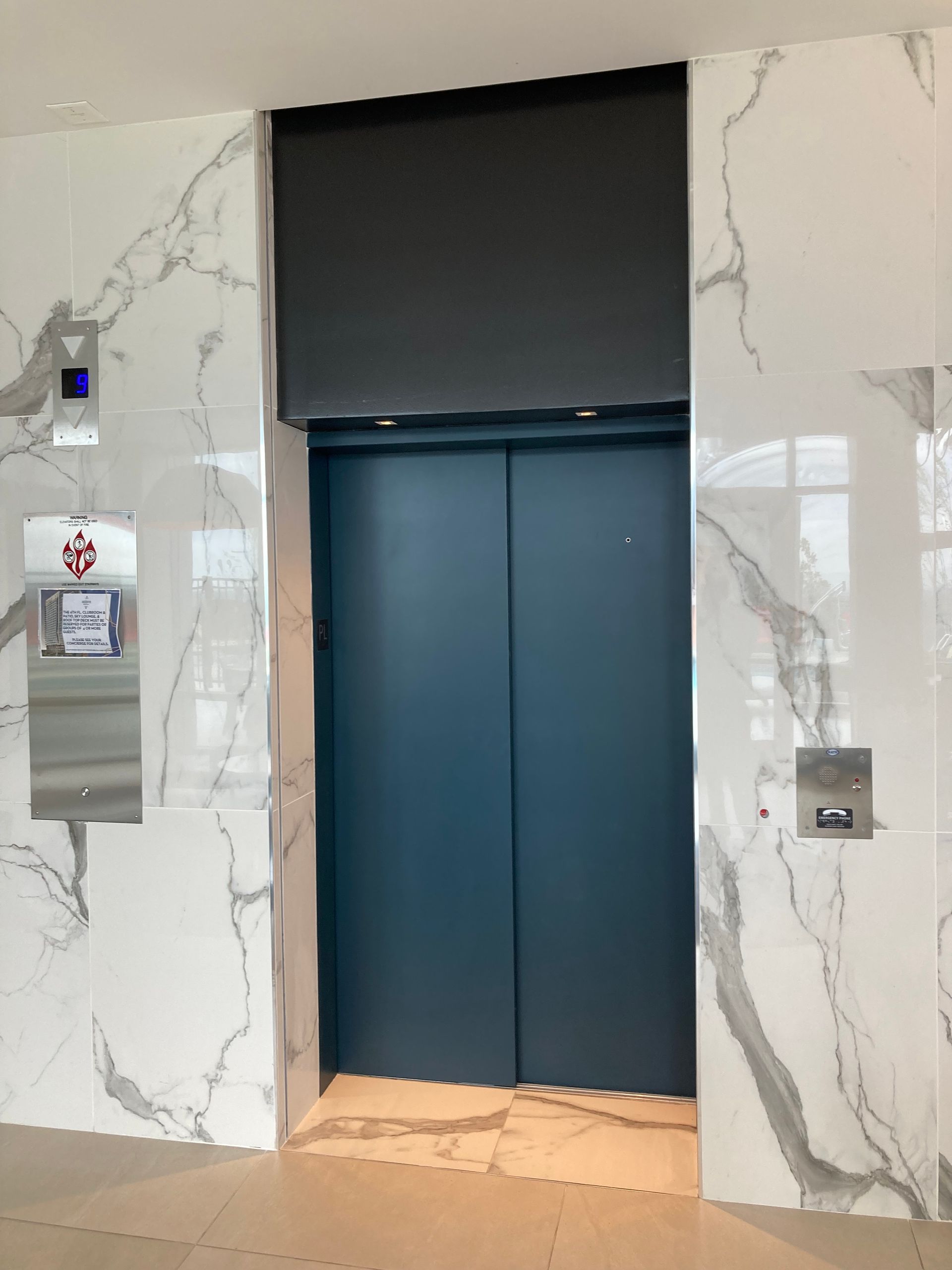

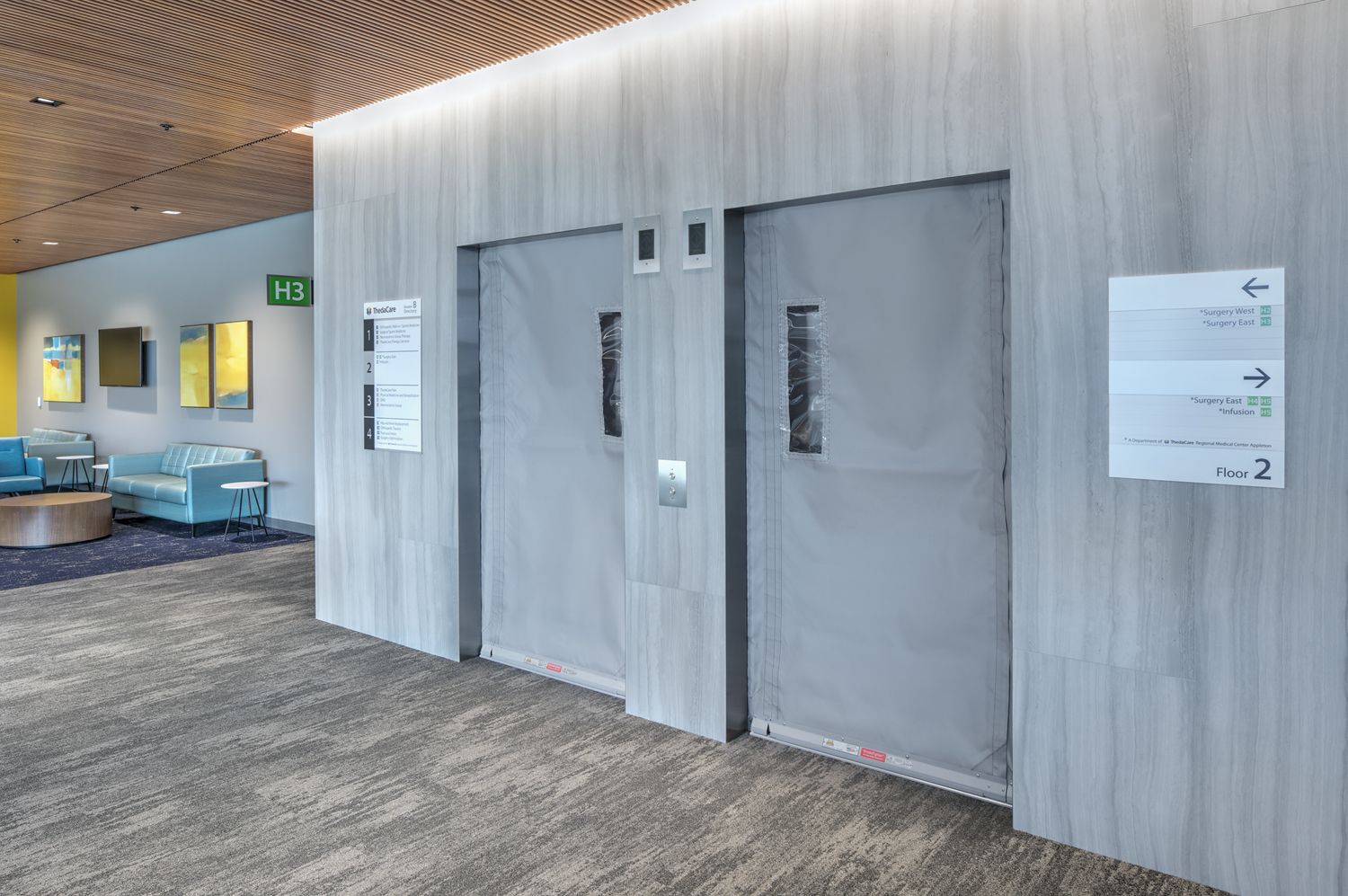

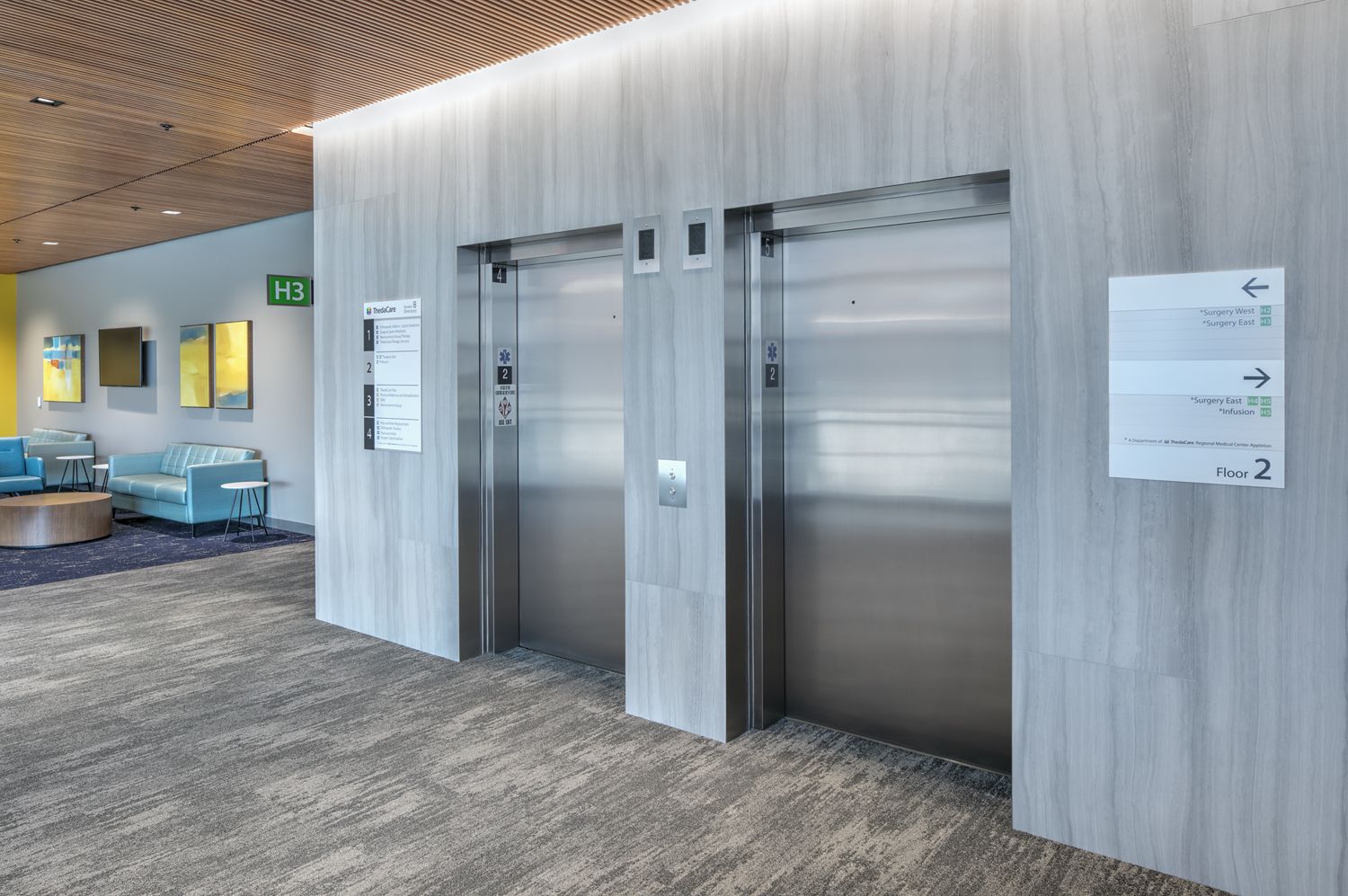

The D150E offers sleek, fabric-based smoke separation with minimal space requirements. Ideal for applications in front of elevator car doors.
FIRE
RATED
90 MIN FIRE RATED UNDER UL10B
SMOKE RATED
SMOKE AND DRAFT RATED UNDER UL1784
OVERHEAD COILING
COIL BOX ABOVE OPENING
NO
EGRESS
NOT AVAILABLE WITH EGRESS
Get straight to the details. Everything you need all in one click.
Resource Hub
Freedom to imagine more.


Space saving. Smoke stopping.
The D150E offers smoke separation with egress and vision panel if required. It offers minimal reveals at the guides along the opening and small coil box above finished ceiling.



The details that matter.
Ratings
1784 UL Smoke & Draft Labeled
Egress
- Available with up to 4 complying swing egress flaps (See Model D150E)
- Available with No Egress (See Model D150)
Code Compliance
- Complies with the current model building codes as an opening protective placed in the required path of egress.
- ADA compliant threshold
- ASME A17.1 compliant vision panel when required
Available Sizes
- Widths to 60'-0"
- Heights to 24'-0"
- For Larger sizes and custom configurations consult the factory
Finishes

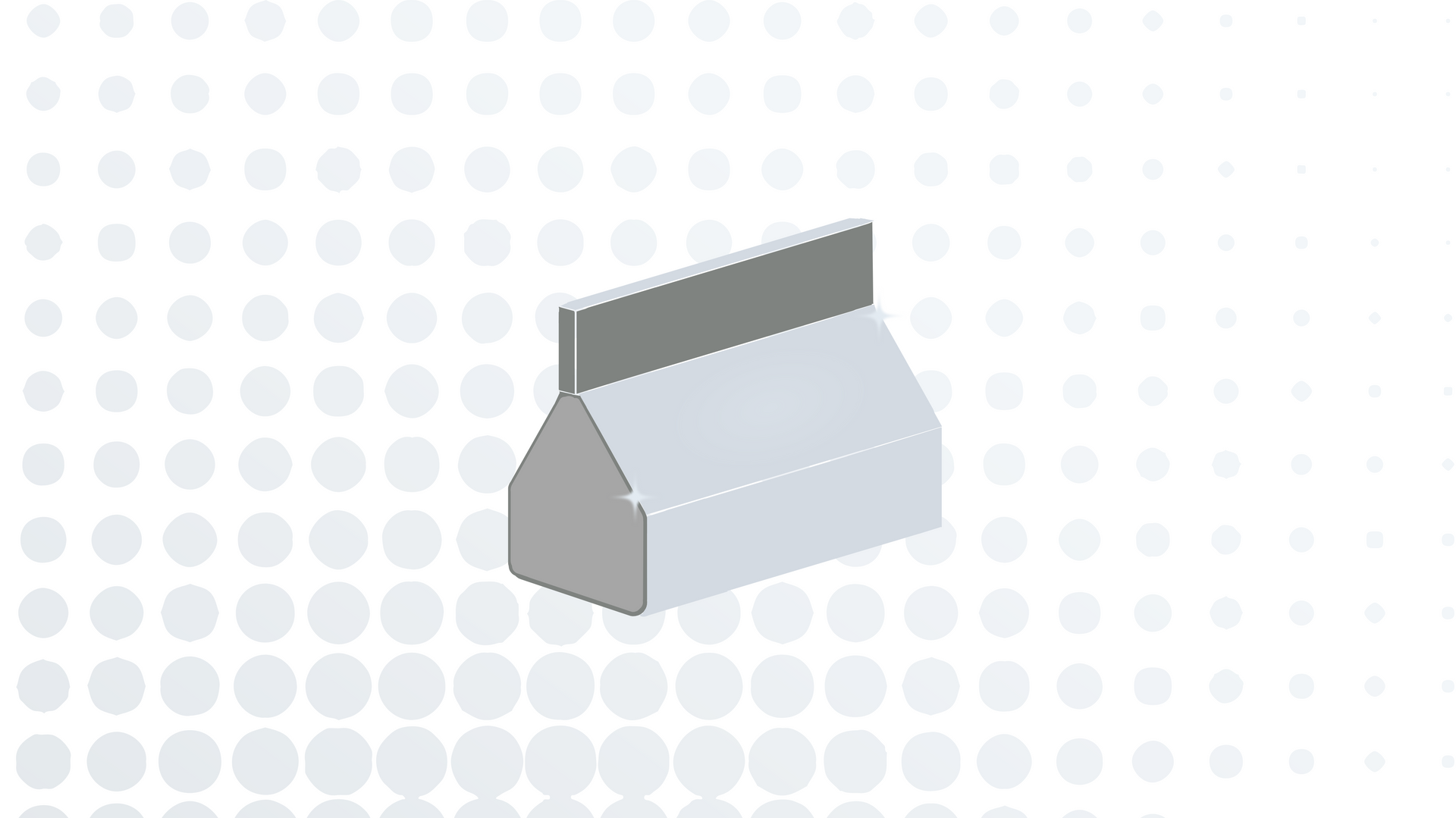

- McKEON Sterling Grey
- RAL Powder Coat

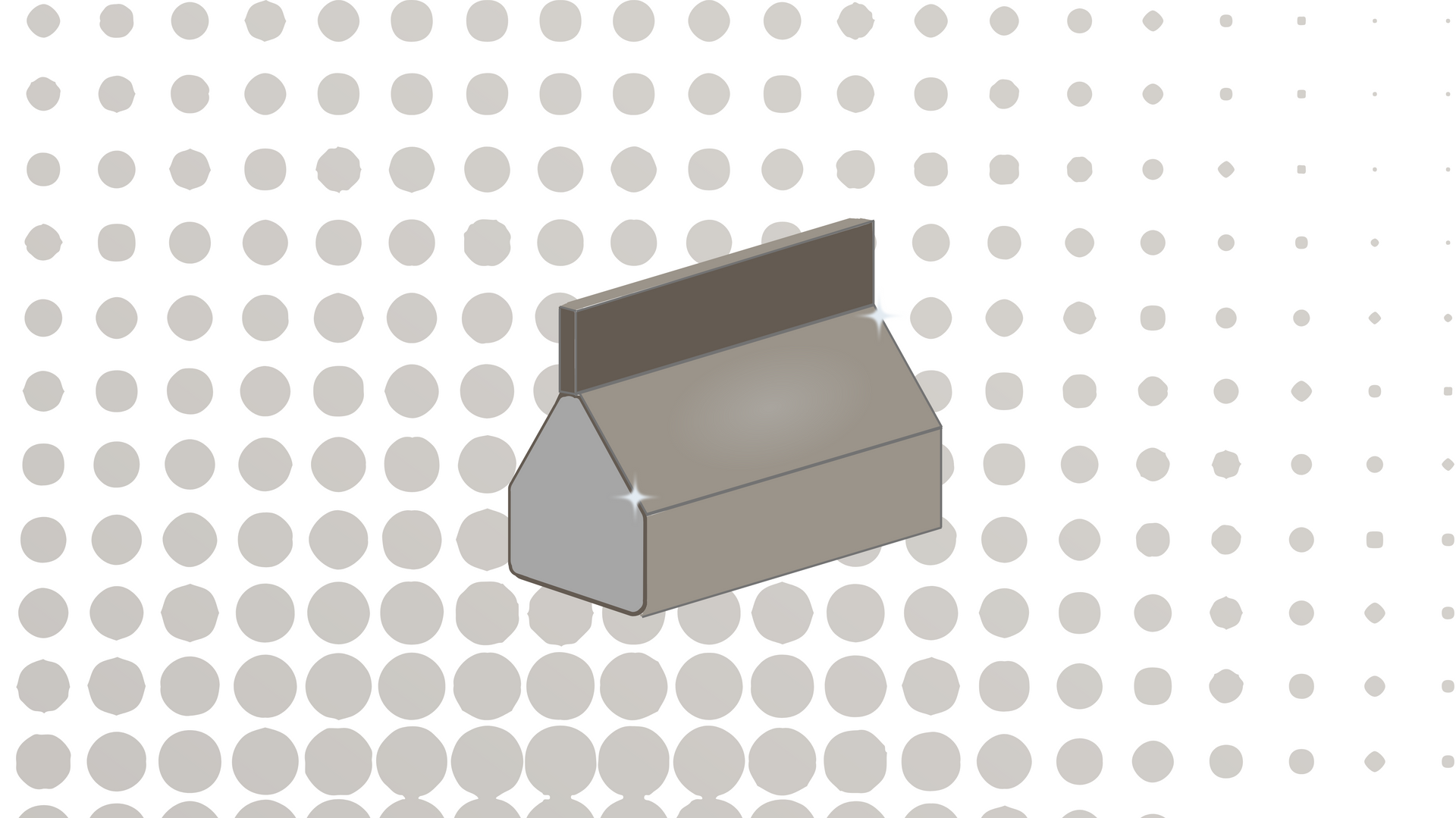

- Stainless Steel

- Applies to exposed metal surfaces only
Operation
- Electric Motor Only
- Fail safe design - automatic self closing mechanism does not require power operation to self-close
Download our specs.
Specification Key
-G = McKeon Sterling Grey (one color option)
-PC = Powder Coat, 188 color selection from standard colors (download chart here)
-SS = Stainless Steel, No. 4 polish finish
RAL Powder Coat Chart
Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.
Download our details.
Download individual PDF sheets, CADs and more BELOW.
Download it all.
D150E Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.

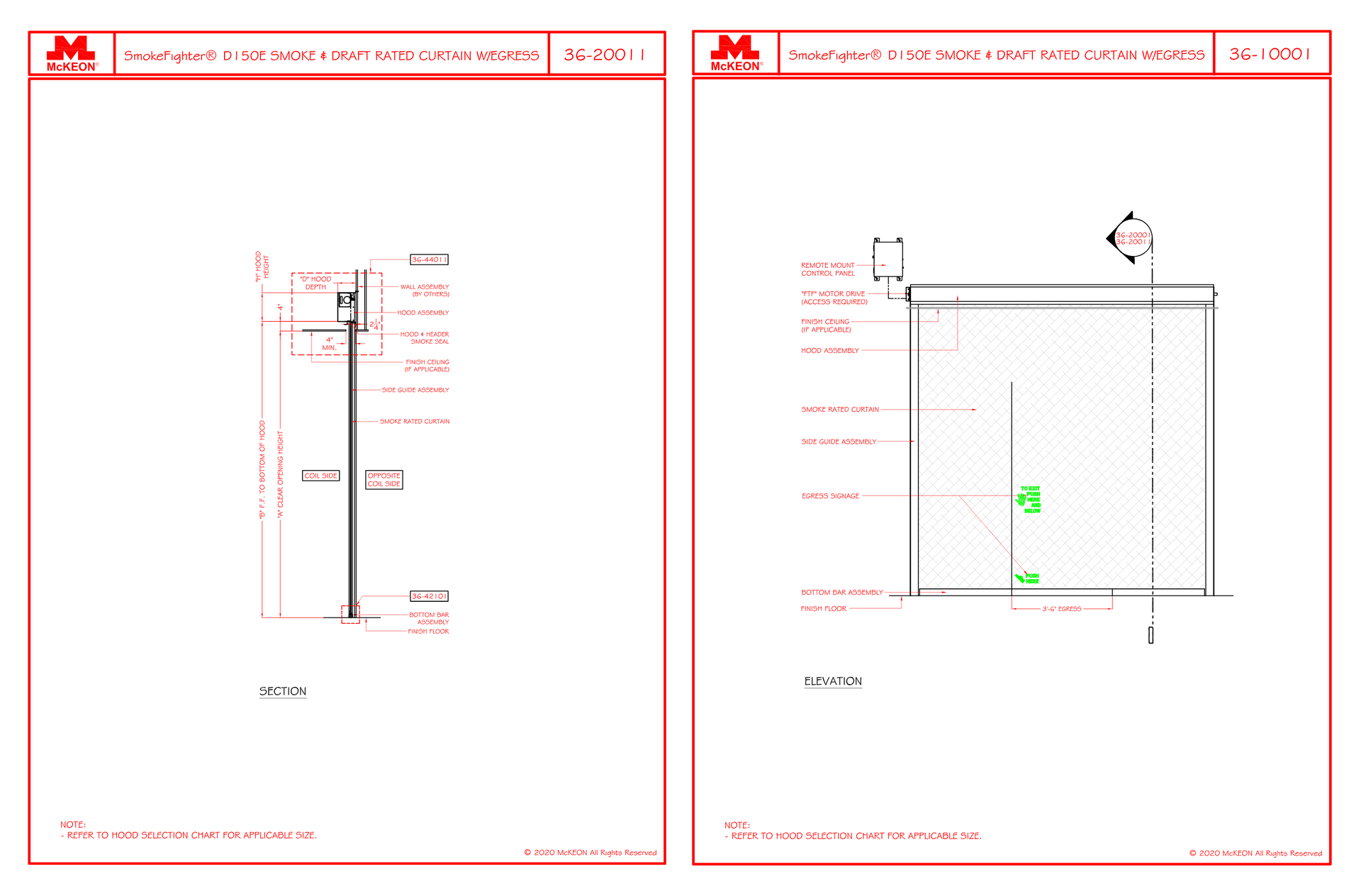

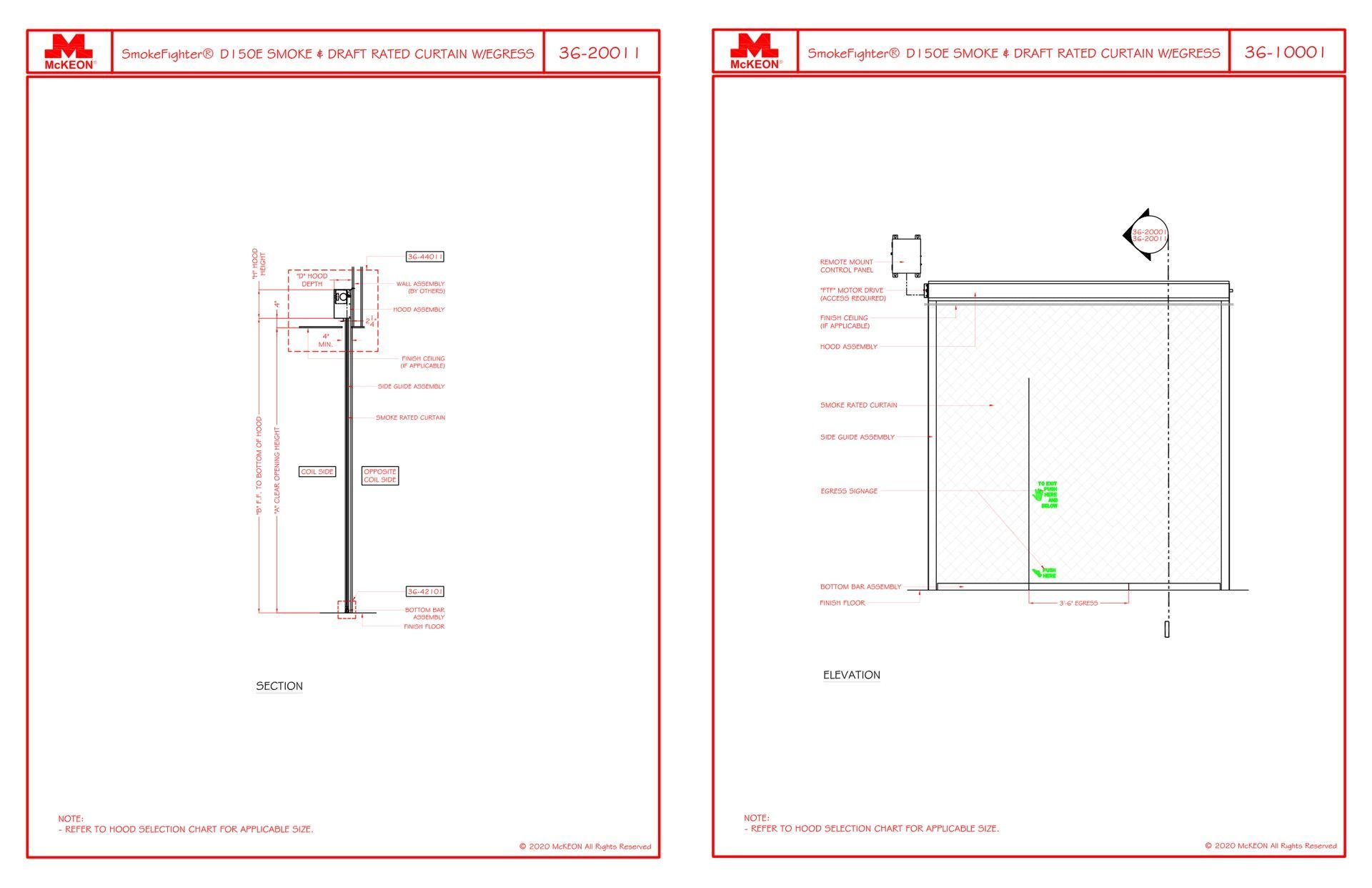

- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.
- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planning.
- D150E-G (McKeon Sterling Grey)

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.

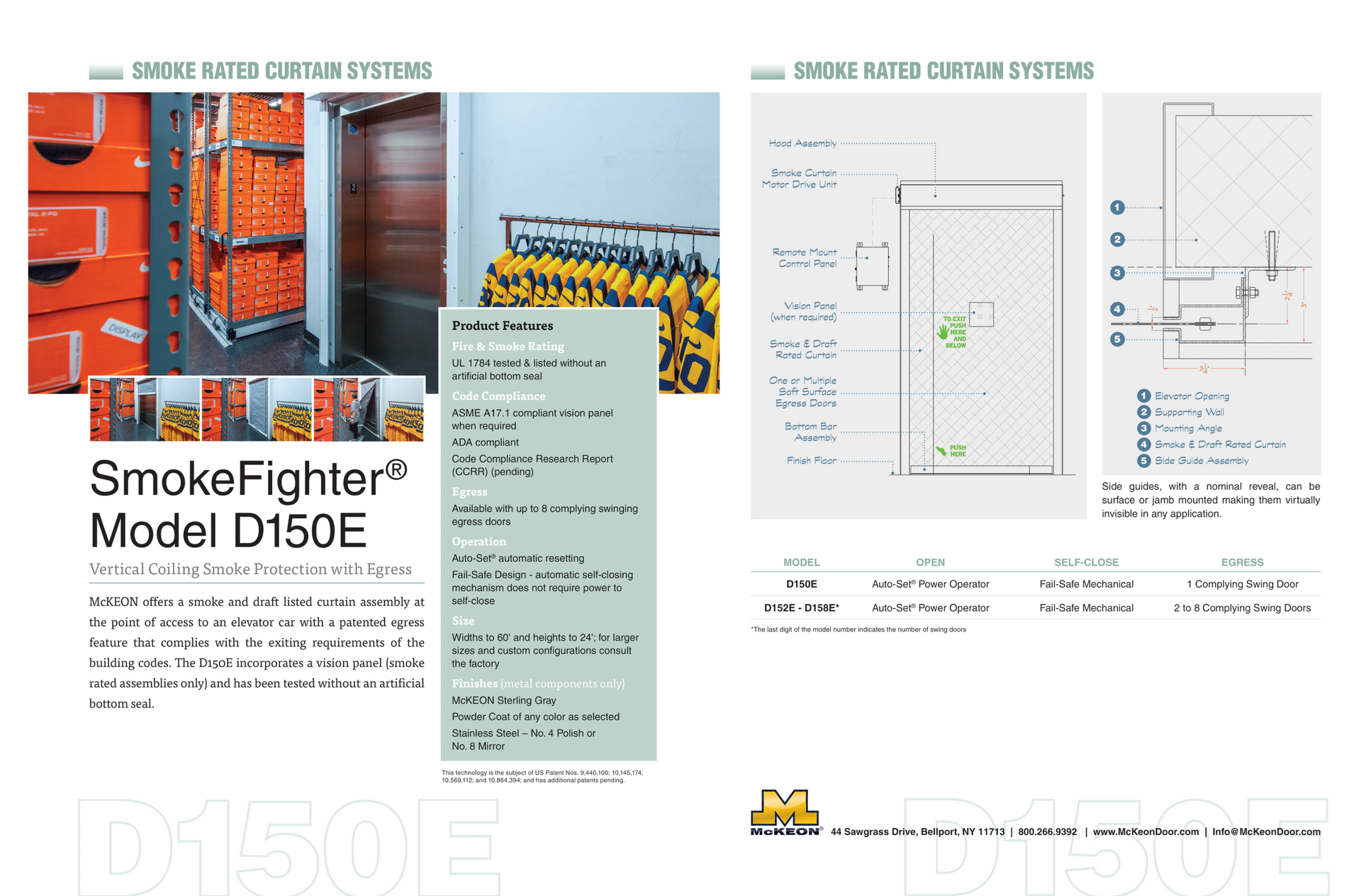

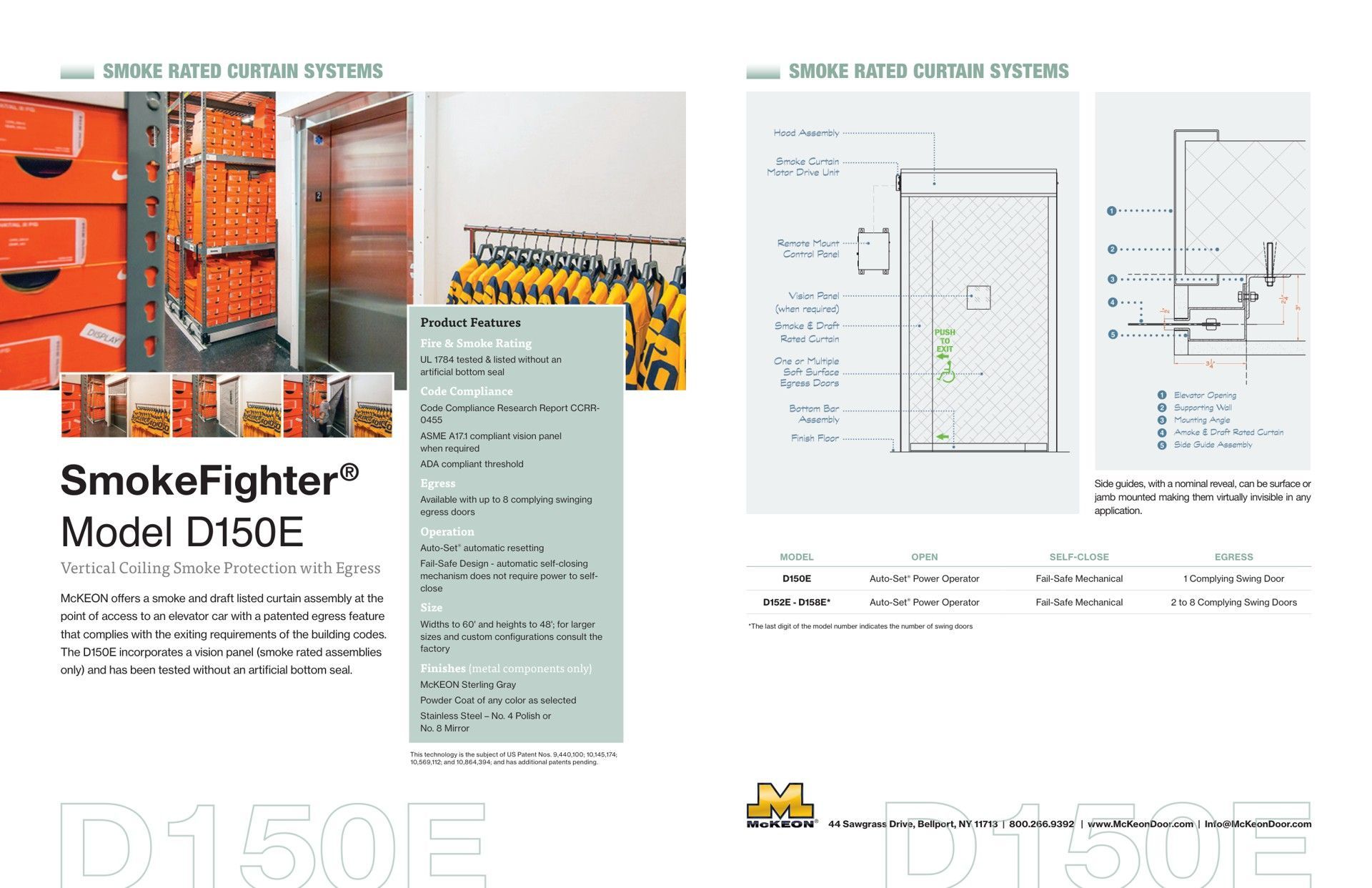

• D150E Series Product Cut Sheet
• RAL Color Chart

Access third-party testing reports that verify this product meets all required standards. Download the complete listing report below.
• Listing Report D150E

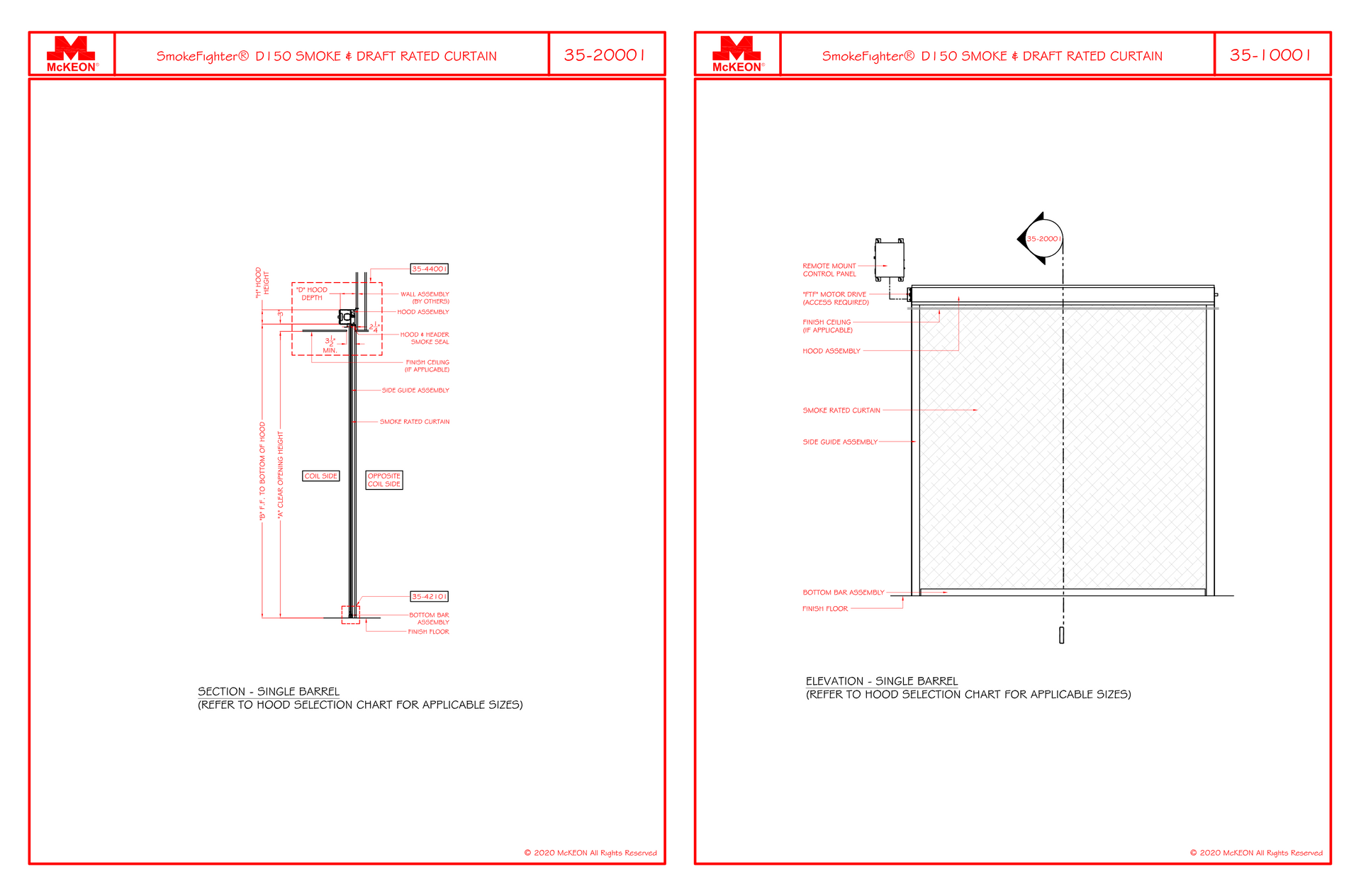

D150 Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.

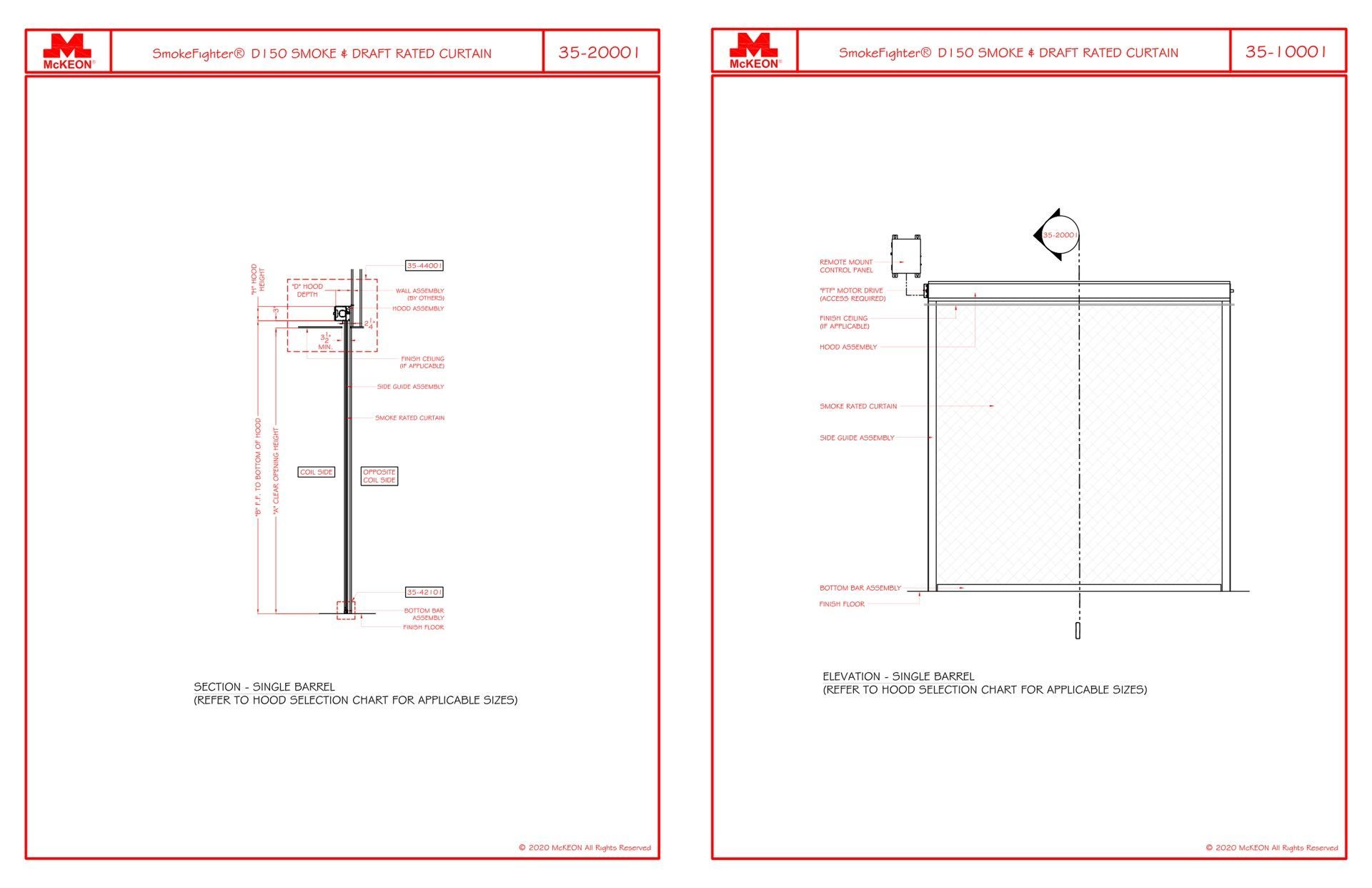

- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.
- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planning.
- D150-G (McKeon Sterling Grey)

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.

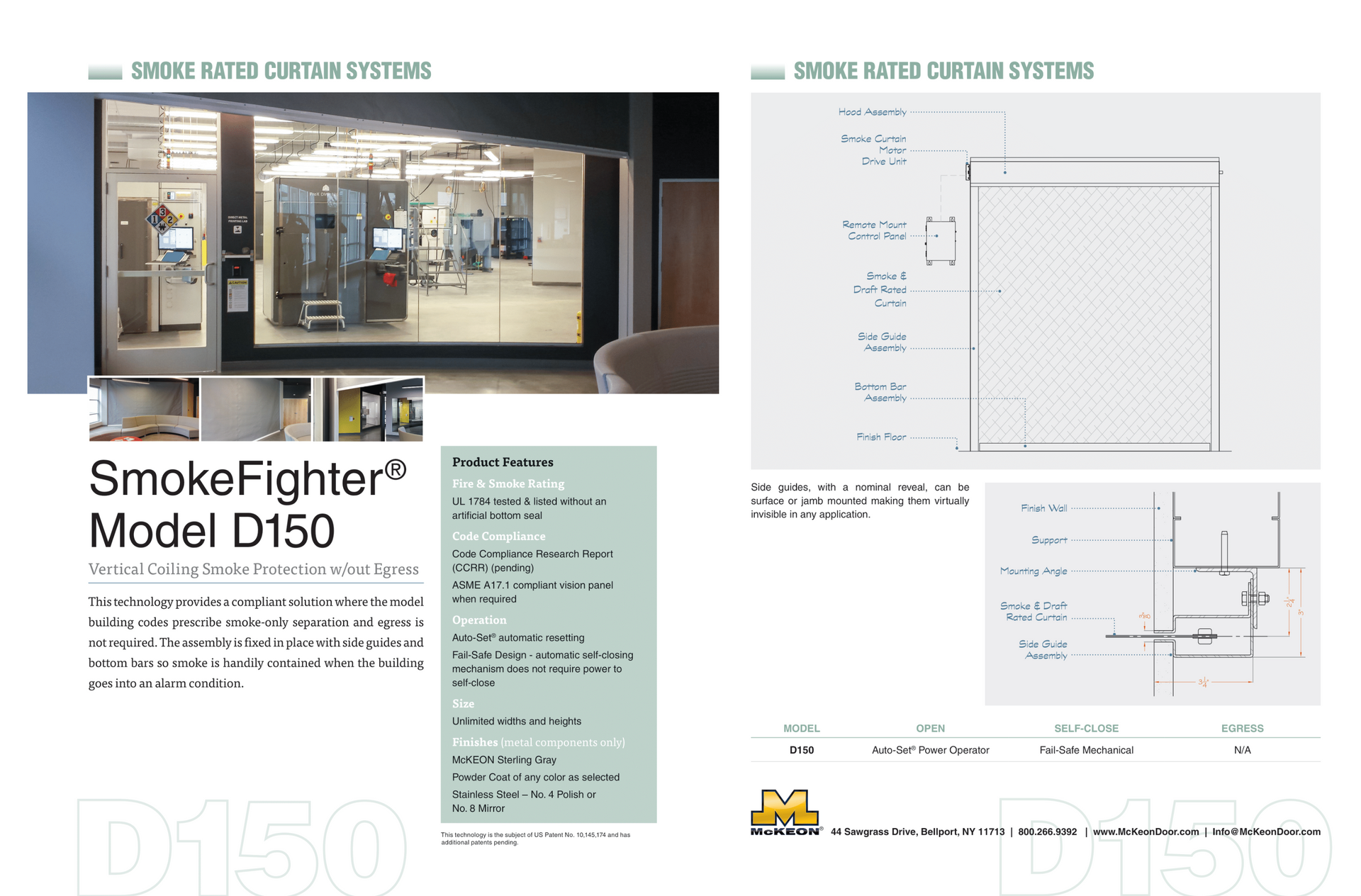

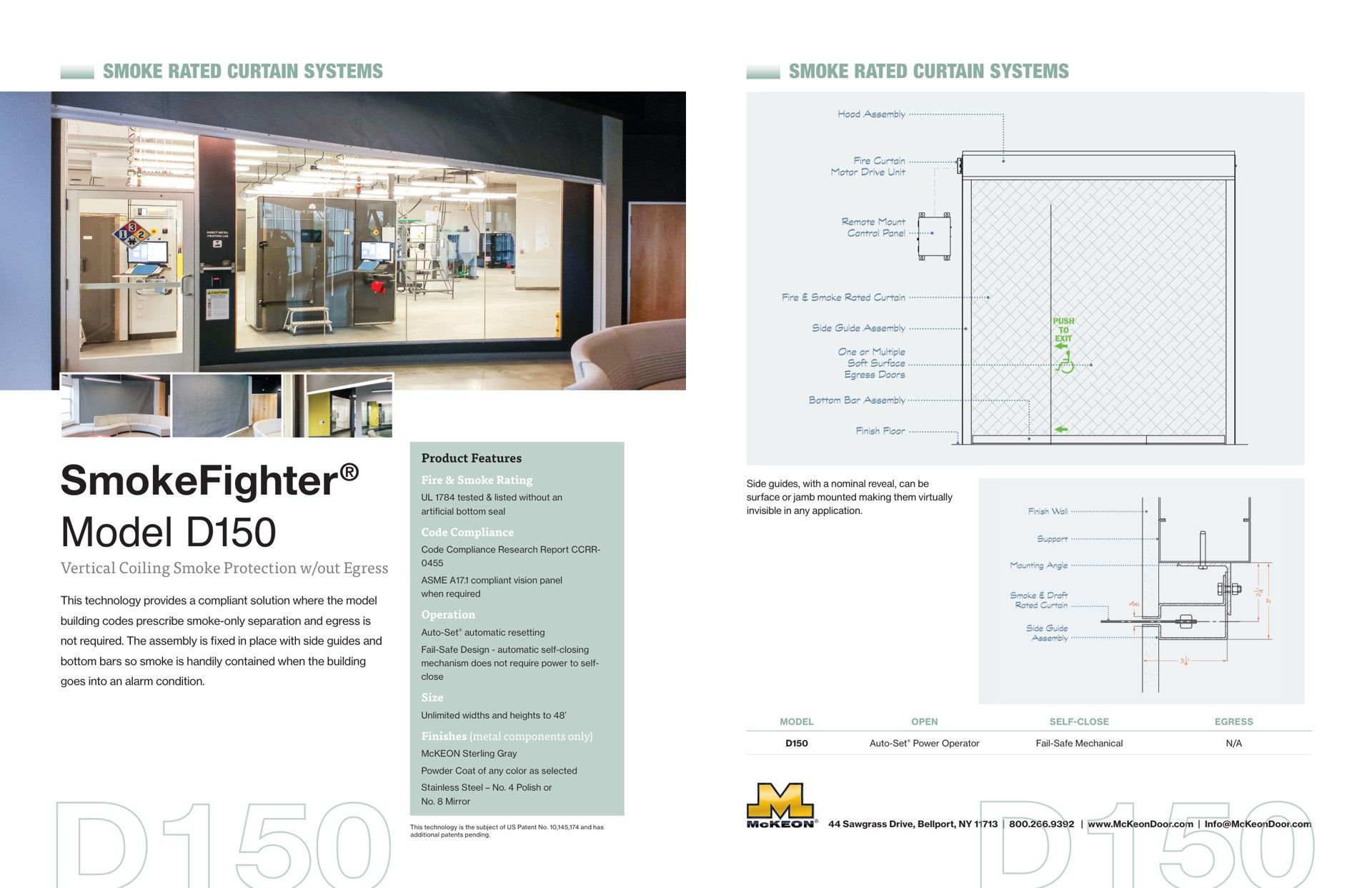

• D150 Series Product Cut Sheet
• RAL Color Chart

Access third-party testing reports that verify this product meets all required standards. Download the complete listing report below.
• Listing Report D150
