PF3000 Series
The PF3000 combines security, airflow, and visibility in one versatile solution. Designed as an overhead coiling perforated door, it allows air to flow freely. Ideal for parking garages needing ventilation or high-security applications requiring visibility, the PF3000 delivers reliable performance without compromising design.
FIRE
RATED
90 MIN FIRE RATED UNDER UL10B
SMOKE RATED
SMOKE AND DRAFT RATED UNDER UL1784
OVERHEAD COILING
COIL BOX ABOVE OPENING
NO
EGRESS
NOT AVAILABLE WITH EGRESS
Get straight to the details. Everything you need all in one click.
Resource Hub
Security that breathes. Visibility when it counts.
The PF3000 is the ideal security solution for garages and areas where airflow and vision through the assembly are needed.

PF3000

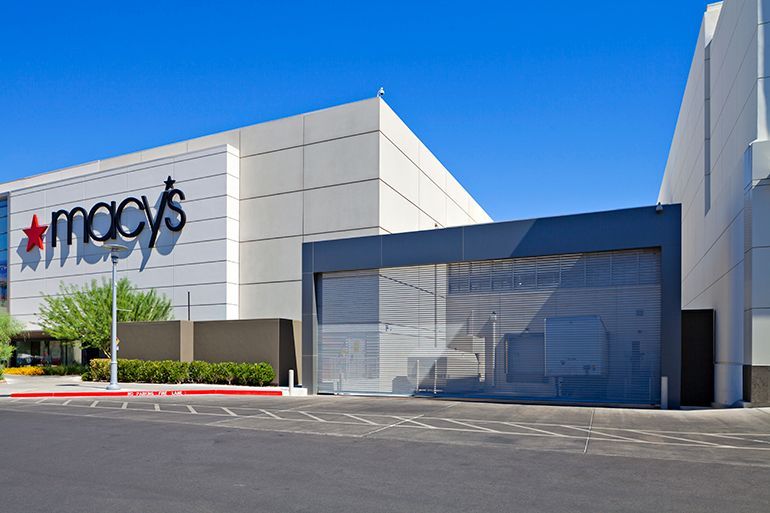

Macy's
PF3000

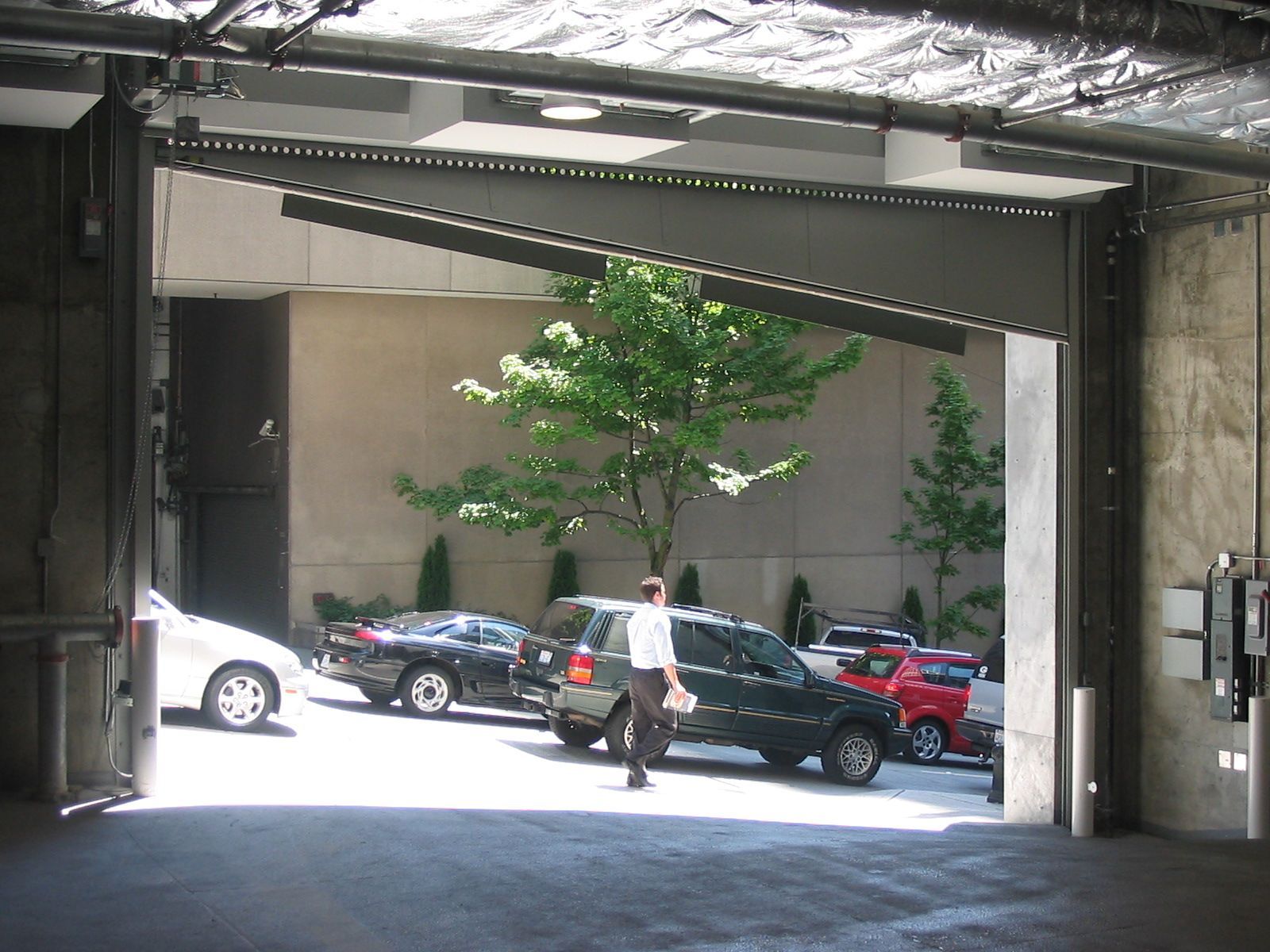

Seattle Library, WA
PF3000-M-PC
The Wharf, Washington, DC
The details that matter.
Egress
See PF3000E below if egress is needed.
Operation
- Electric Motor Operation - Outboard Motor
- Electric Motor operation - Direct Drive Motor (ADF)
- Manual - Hand Chain (HC)
- Fail safe motor operator available (see
Model FSFD-IS)
Special Features
- Perforated slats come in the following size:
- 1/8” diameter holes set at 3/16” staggered centers
Available Sizes
- Widths up to 70'-0"
- Unlimited heights
- For larger sizes and custom configurations consult the factory
Finishes
- McKeon Sterling Grey
- RAL Powder Coat
- Stainless Steel (No. 4 Polish)
- Aluminum (clear anodized)
Download our specs.
Operation
-M = Outboard Electric Motor Operator
-HC = Manual Hand Chain
-ADF = Direct Drive Operator
-E = Deployable egress door(s)
Finish
-G = McKeon Sterling Grey (one color option)
-PC = Powder Coat, 188 standard colors
-SS = Stainless Steel, No. 4 polish finish
-A = Clear Anodized Aluminum
RAL Powder Coat Chart
Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.
Download our details.
Download it all.

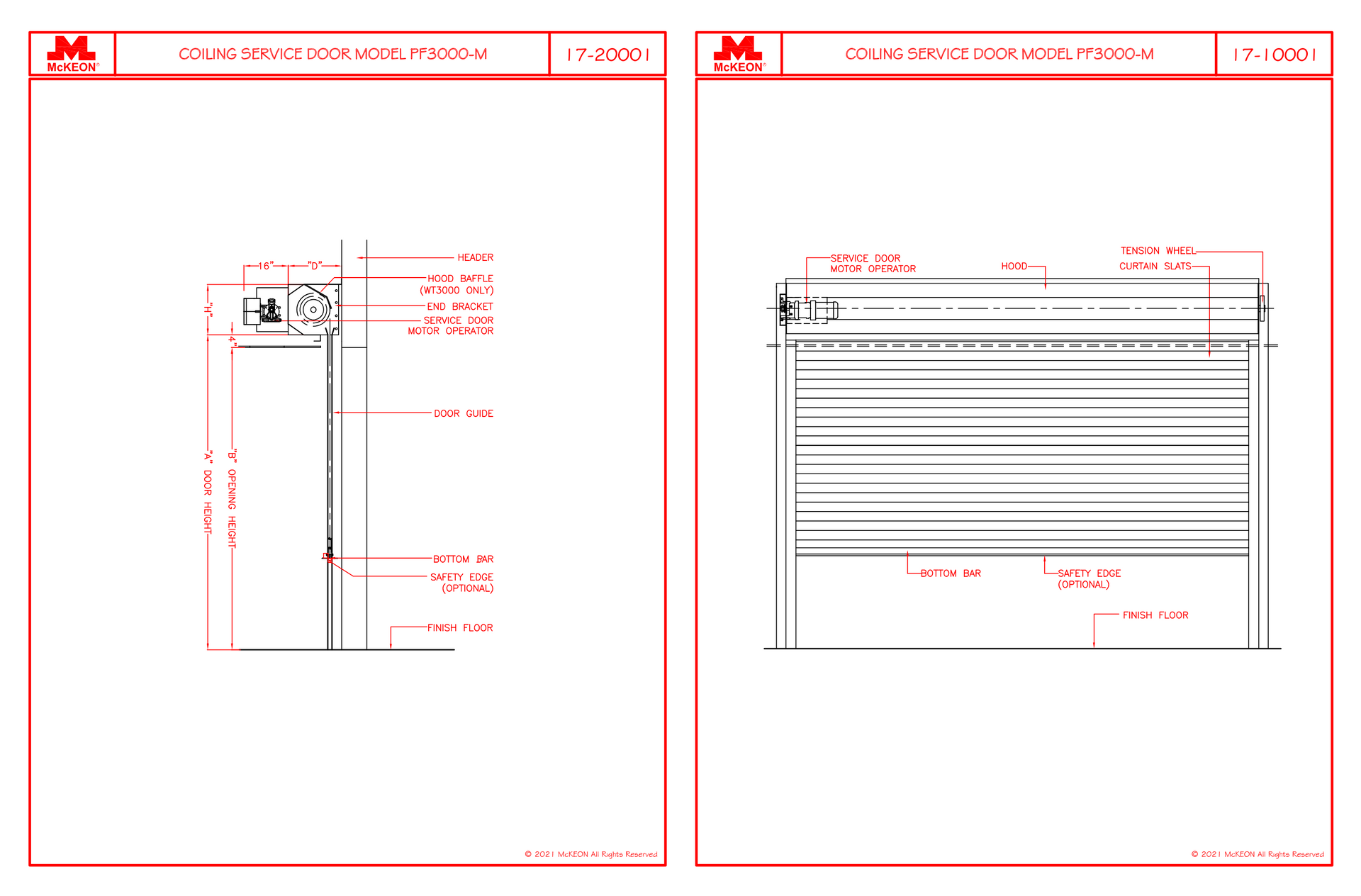

PF3000-M Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.
- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.
- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planning.
- PF3020-M-A (Clear Anodized Aluminum)
- PF3020-M-G (McKeon Sterling Grey)
- PF3020-M-PC (RAL Powder Coat Selection)
- PF3020-M-SS (Stainless Steel No 4. Polish)

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.

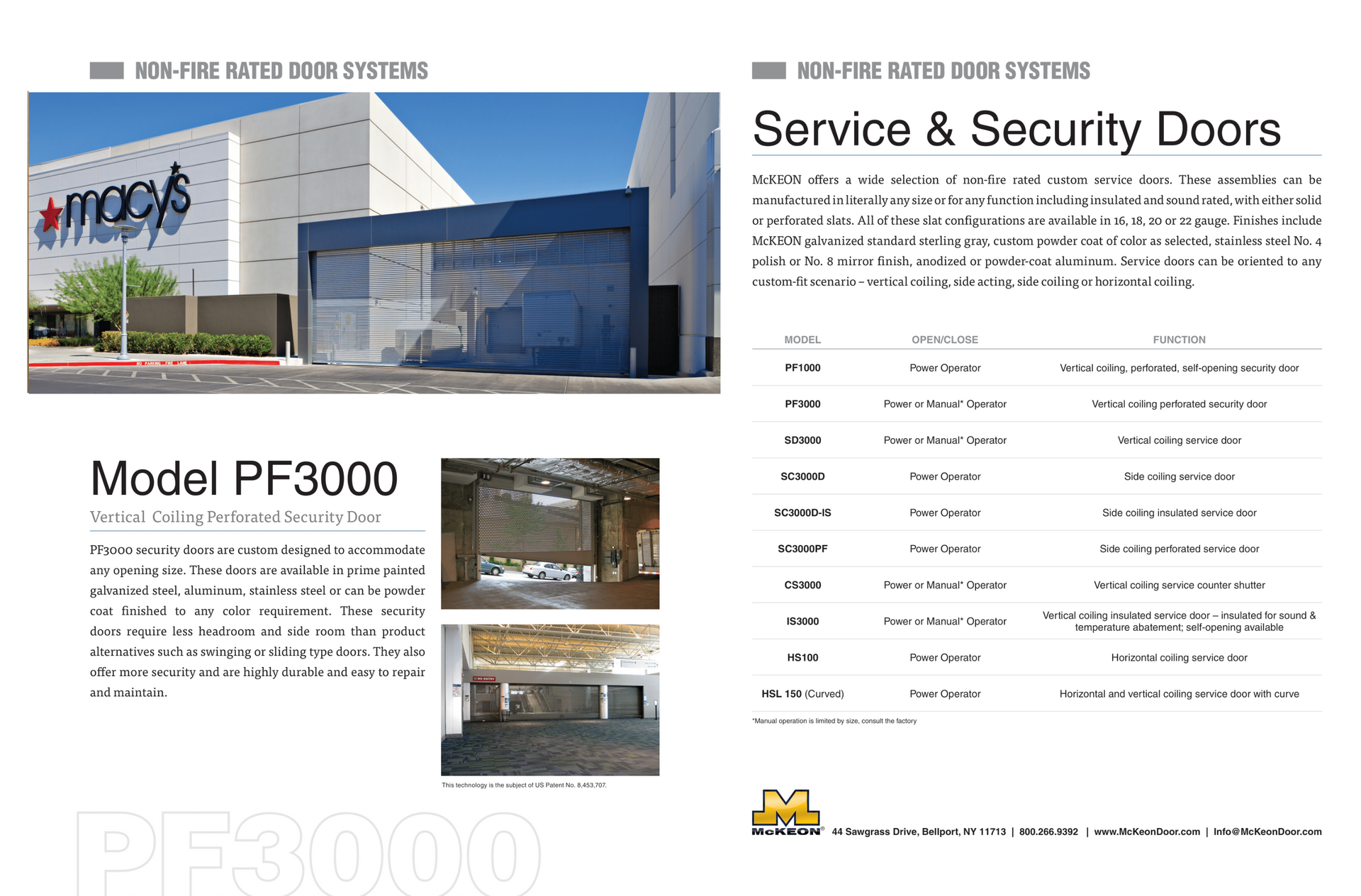

• PF3000 Series Product Cut Sheet
• RAL Color Chart

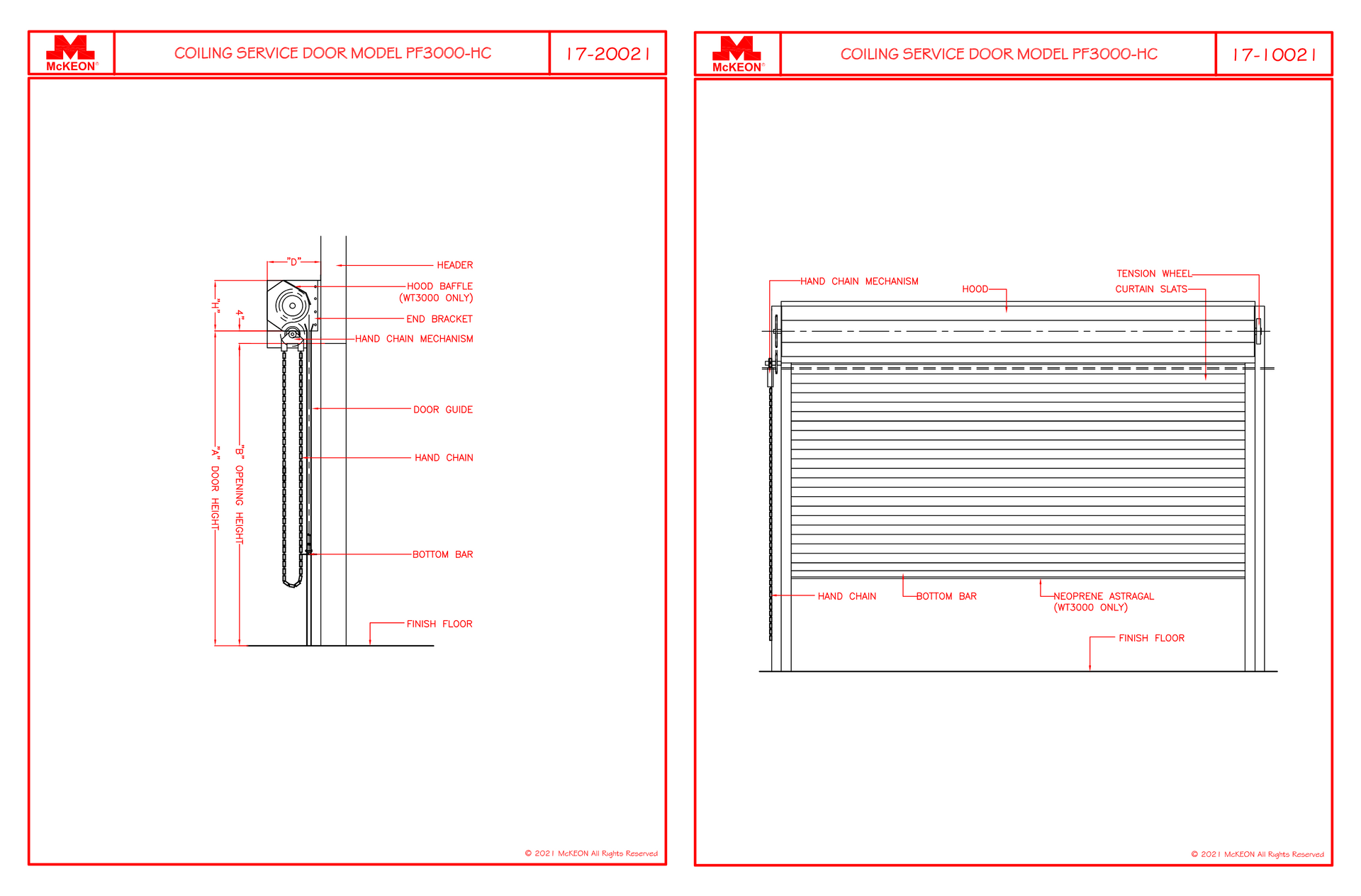

PF3000-HC Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.
- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.
- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planning.
- PF3020-HC-A (Clear Anodized Aluminum)
- PF3020-HC-G (McKeon Sterling Grey)
- PF3020-HC-PC (RAL Powder Coat Selection)
- PF3020-HC-SS (Stainless Steel No 4. Polish)

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.
• PF3000 Series Product Cut Sheet
• RAL Color Chart

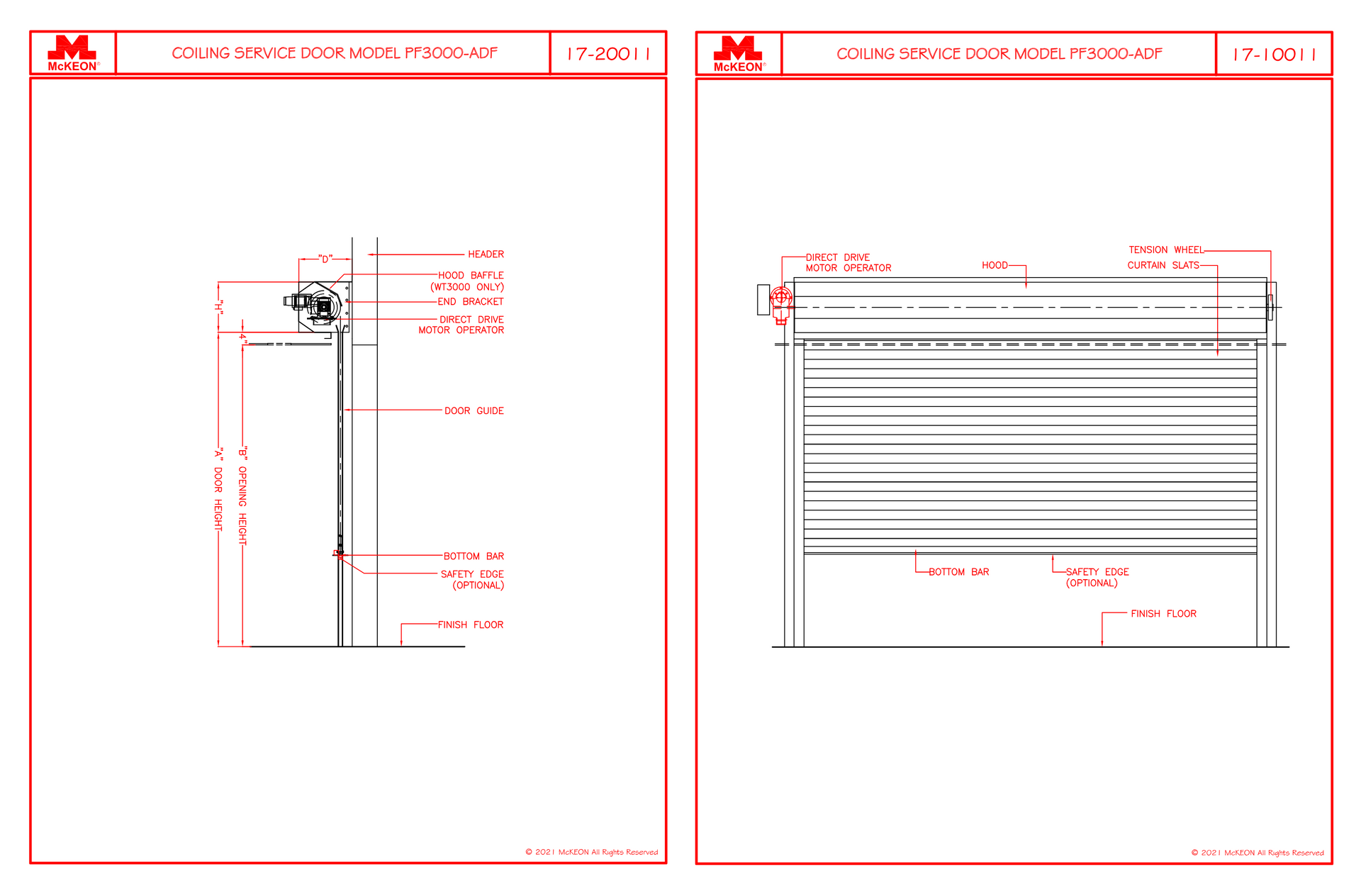

PF3000-ADF Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.
- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.
- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planniang.
- PF3016-ADF-G (McKeon Sterling Grey)
- PF3016-ADF-PC (RAL Powder Coat Selection)
- PF3016-ADF-SS (Stainless Steel No 4. Polish)

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.
• PF3000 Series Product Cut Sheet
• RAL Color Chart

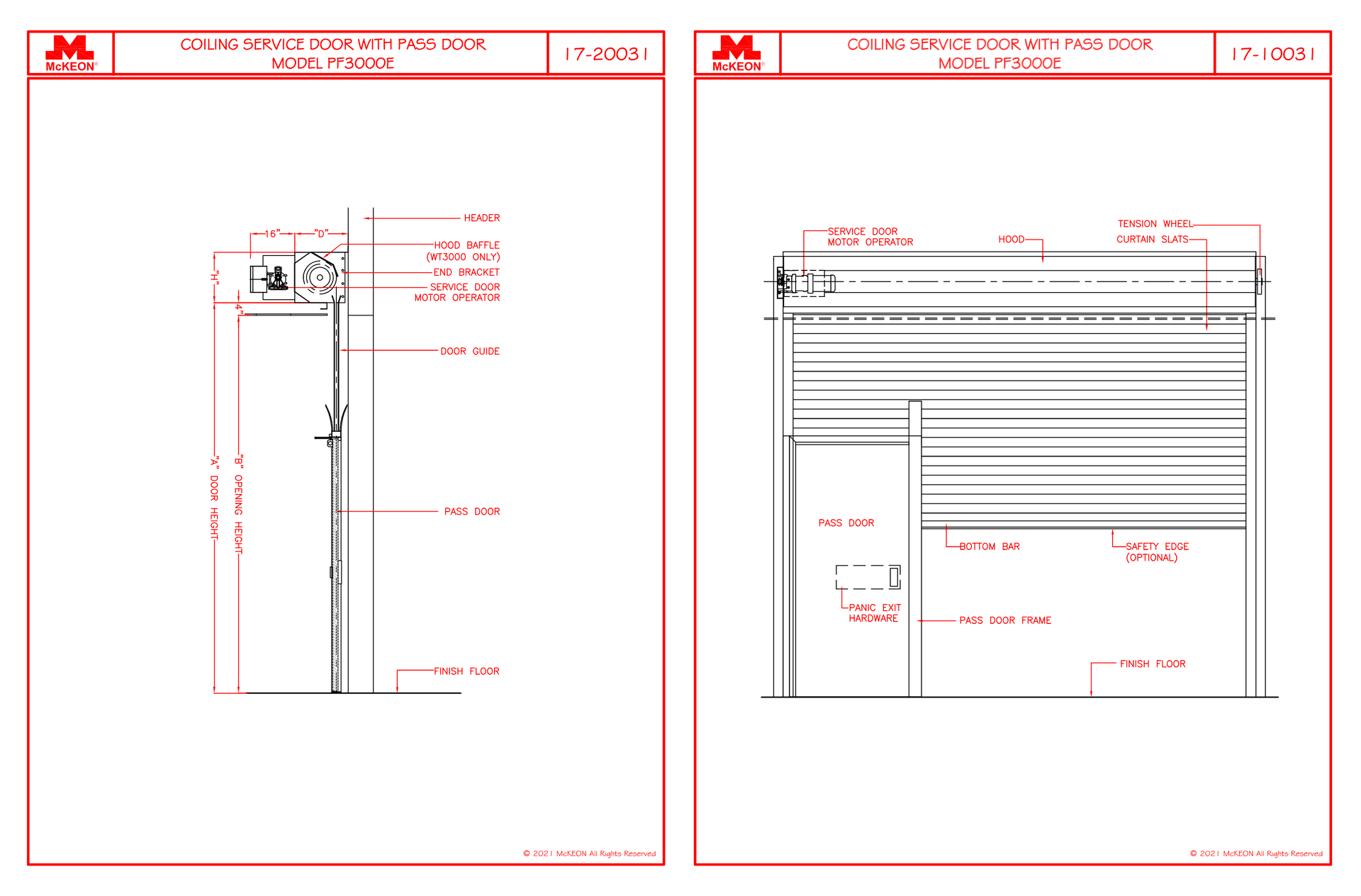

PF3000E-M Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.
- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.
- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planning.
Available upon request.

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.
• PF3000 Series Product Cut Sheet
• RAL Color Chart
