FireFighter® Model D400
The Model D400 is one of the most versatile fire and smoke-rated products, featuring a coated stainless steel wire mesh weave that allows for an ultra-slim coil box overhead. This unique design makes the D400 ideal for tight spaces and a wide range of applications. Whether you’re dealing with limited headroom or complex architectural designs, the D400 provides seamless fire and smoke protection without sacrificing space or aesthetics.
FIRE
RATED
90 MIN FIRE RATED UNDER UL10B
SMOKE RATED
SMOKE AND DRAFT RATED UNDER UL1784
OVERHEAD COILING
COIL BOX ABOVE OPENING
NO
EGRESS
NOT AVAILABLE WITH EGRESS
Get straight to the details. Everything you need all in one click.
Resource Hub
Created for tight spaces.
Designed to disappear. Engineered for fire protection.
The D400 offers a lightweight compact alternative to traditional steel overhead coiling fire doors. Providing up to 90 minutes UL10B fire rating.
Choice Hotels
Bethesda, MD

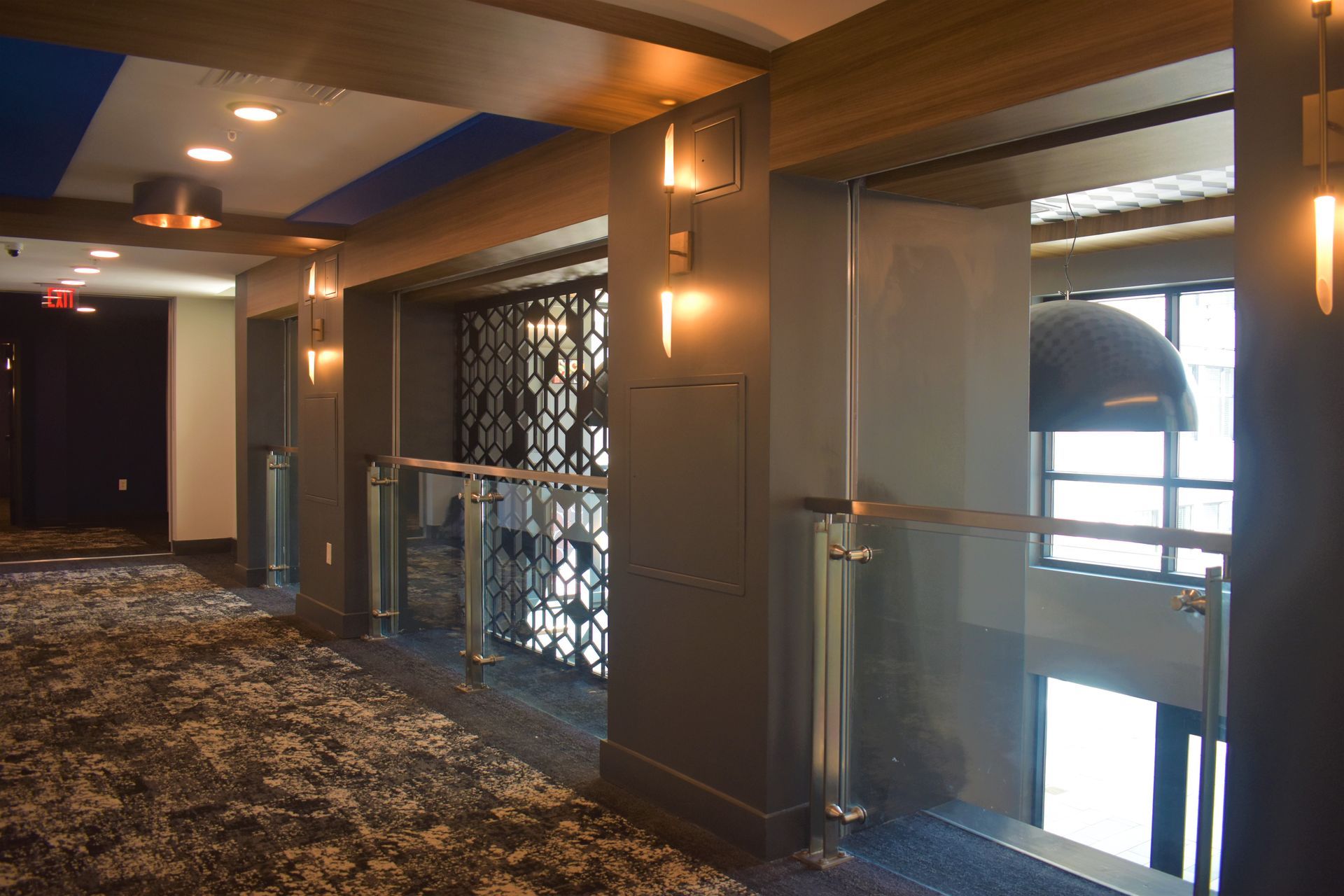

The Nine
College Park, MD
The details that matter.
Ratings
- 90 min UL10B
- 1784 UL Smoke & Draft Labeled
Egress
This product is not available with egress
Code Compliance
N/A
Available Sizes
- Widths to 80'-0"
- Heights to 40'-0"
- Size combinations vary and depend on the specific dimensions of your project. For details beyond 10'-0" x 10'-0", please consult the factory to confirm compatibility.
Finishes
- McKEON Sterling Grey
- RAL Powder Coat
- Stainless Steel

- Applies to exposed metal surfaces only
Operation
- Electric Motor Only

- Fail safe design - automatic self closing mechanism does not require power operation to self-close
Download our specs.
Specification Key
-G = McKeon Sterling Grey (one color option)
-PC = Powder Coat, 188 color selection from standard colors (download chart here)
-SS = Stainless Steel, No. 4 polish finish
RAL Powder Coat Chart
Explore our RAL 49 Series Series Color Chart, featuring a wide range of standard colors in durable powder coat finishes. For projects requiring specific color matching, custom colors and finishes beyond this chart are also available upon request.
Download our details.
Download individual PDF sheets, CADs and more BELOW.
Download it all.
D400 Spec Kit

Need more details? Click below to download individual product PDF sheets and get all the details you need at your fingertips.

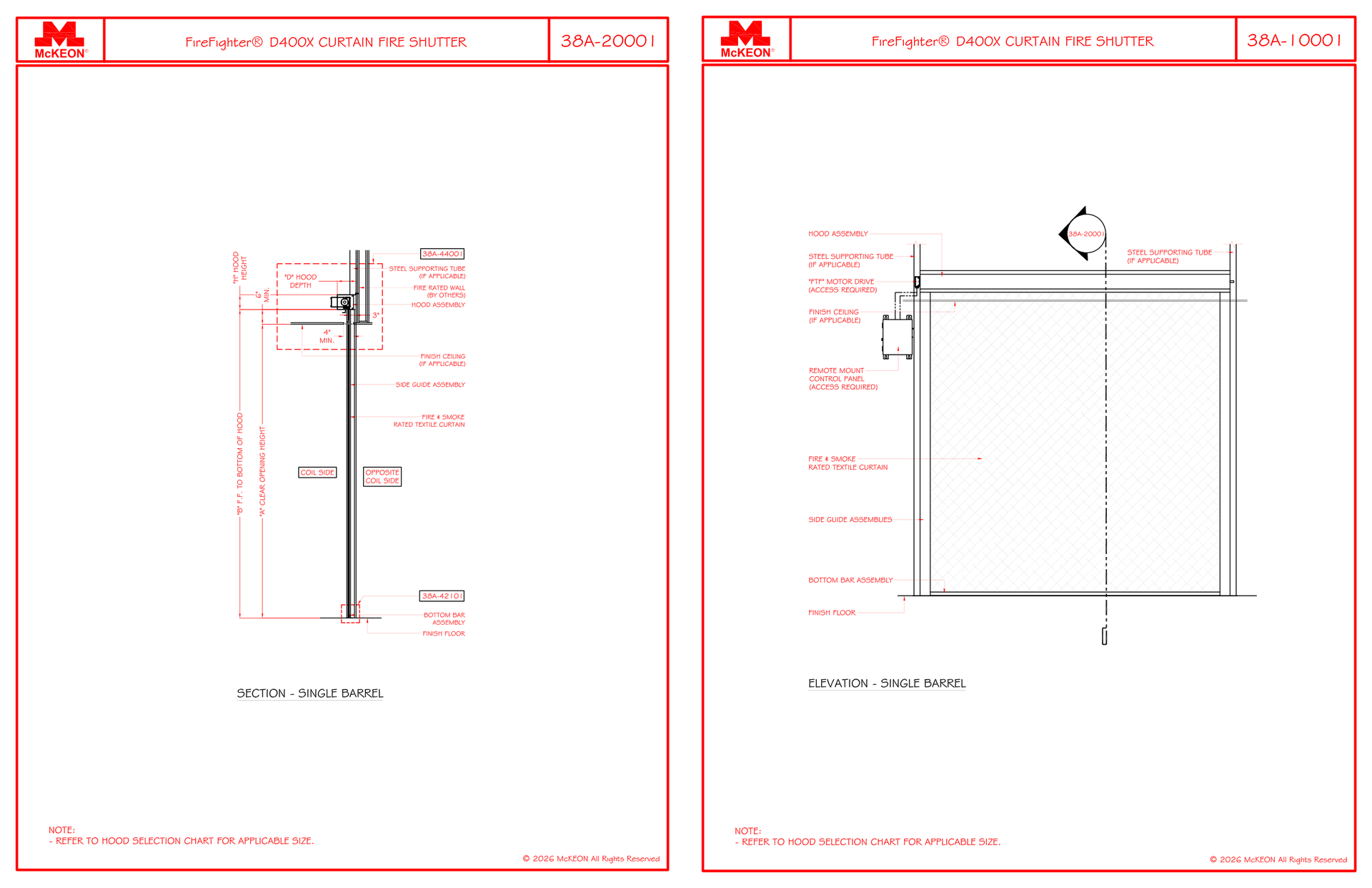

- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Seamlessly integrate our product into your plans. Click below to download CAD files for precise design compatibility.
- Elevation Detail
- Section Detail
- Plan Detail
- Jamb Details
- Bottom Bar Detail
- Coil Box Sizing Chart

Access detailed product specifications. Download a Word document template tailored to the finishes listed above for seamless project planning.
- D400-G (McKeon Sterling Grey)

Get all the product data you need to start specifying with confidence. Download comprehensive info in this section to streamline the process.

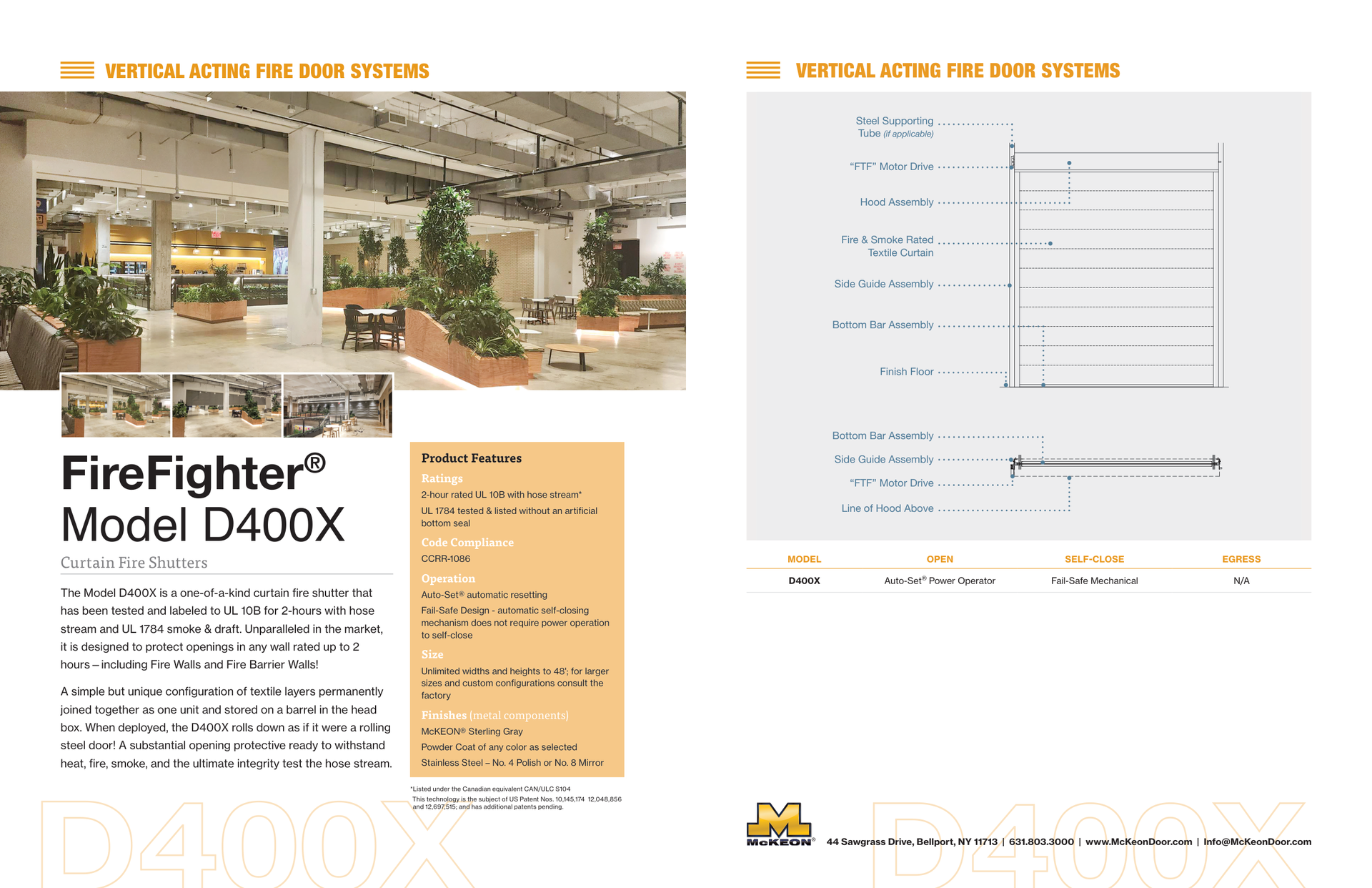

• D400 Series Product Cut Sheet
• RAL Color Chart

Access third-party testing reports that verify this product meets all required standards. Download the complete listing report below.
• Listing Report D400
