Model AC8800CP | Accordion with Paddle Egress
Model AC8800CP | Accordion with Paddle Egress
FINISH OPTIONS (DOWNLOAD SPECS BELOW):
- Standard Baked Enamel (Grey)
- RAL Powder Coat (188 Colors)
- Stainless Steel (No. 4 Polish)
AVAILABLE SIZES:
- Widths to 80′ (160′ bi-parting)
- Heights to 24'
- For larger sizes and custom configurations consult the factory
EGRESS:
- Available with multiple fixed complying swinging egress doors when required
- Power assisted exit device (AC8800 only)
RADIUS:
- Negotiates radius curves: 3′-0″ with egress doors; 2′-0″ without egress doors
AVAILABLE RATINGS:
- 1-3 HR Fire Rating under UL10B
- Smoke & Draft labeled UL 1784
For any additional information, please visit the manufacturer's website at www.mckeondoor.com

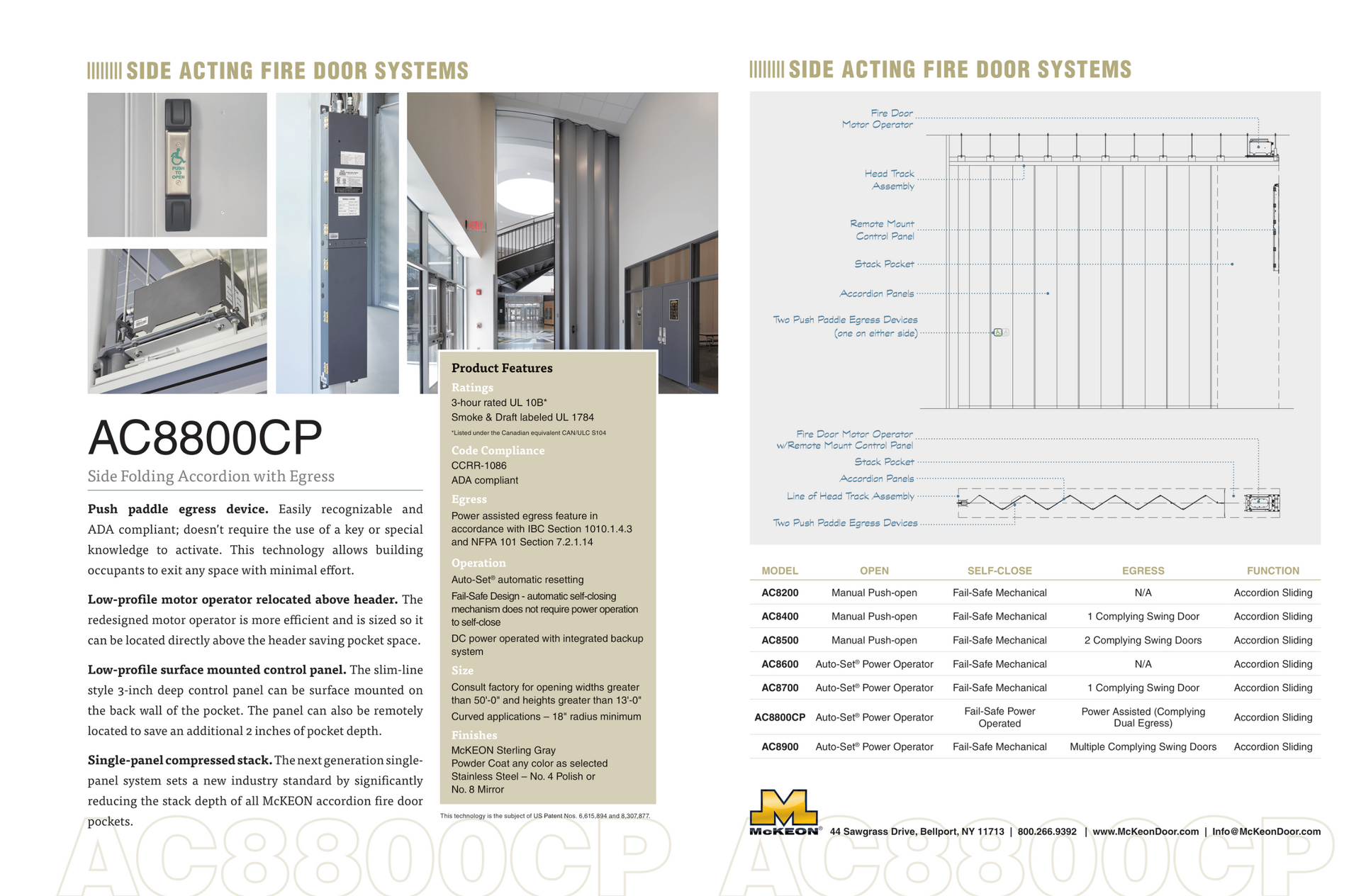

AC8800CP Cut Sheet
If you have any addtional questions please call us at (301) 801-6329 or email us at McKeonDC@mckeondoor.com

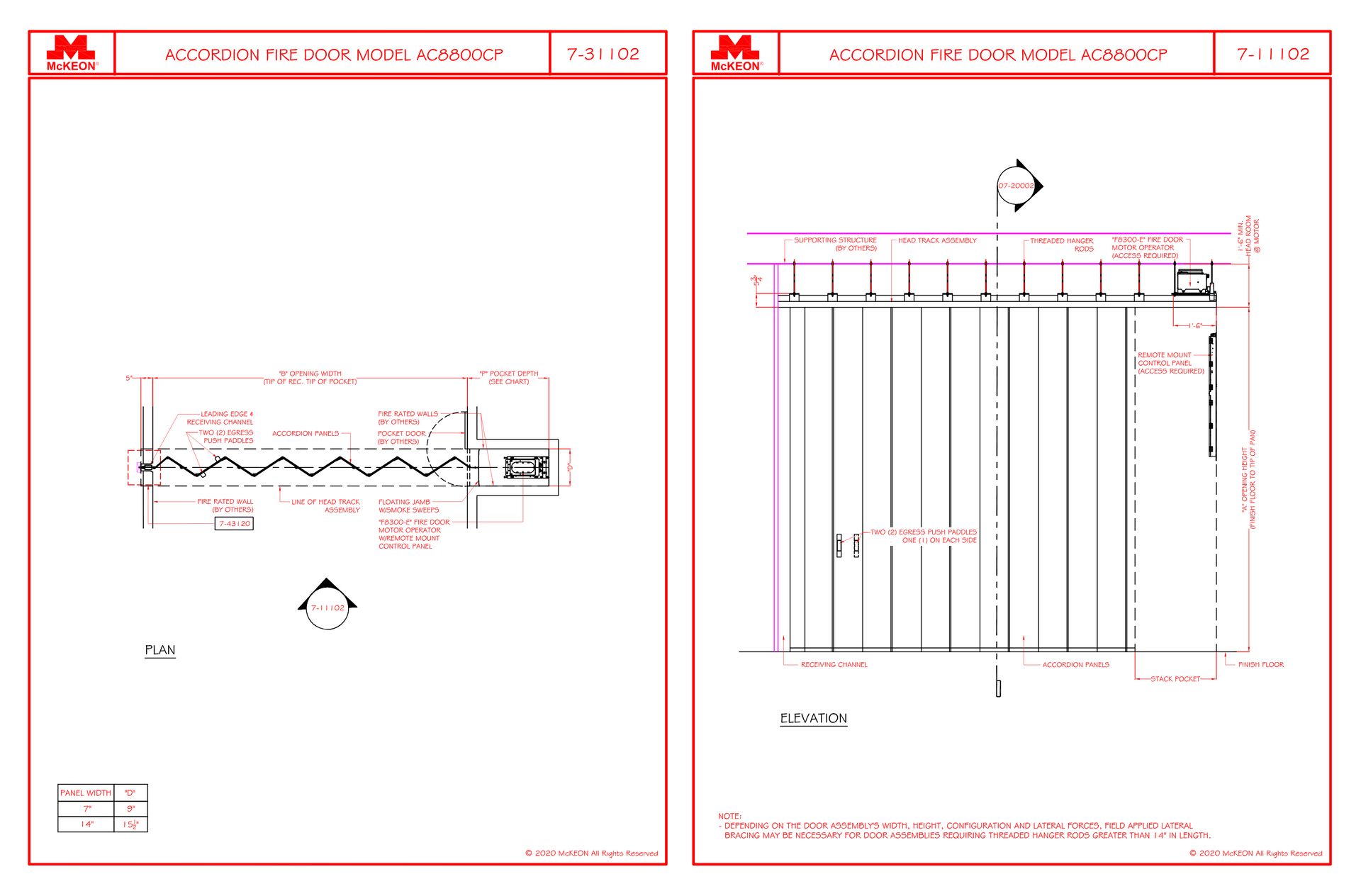

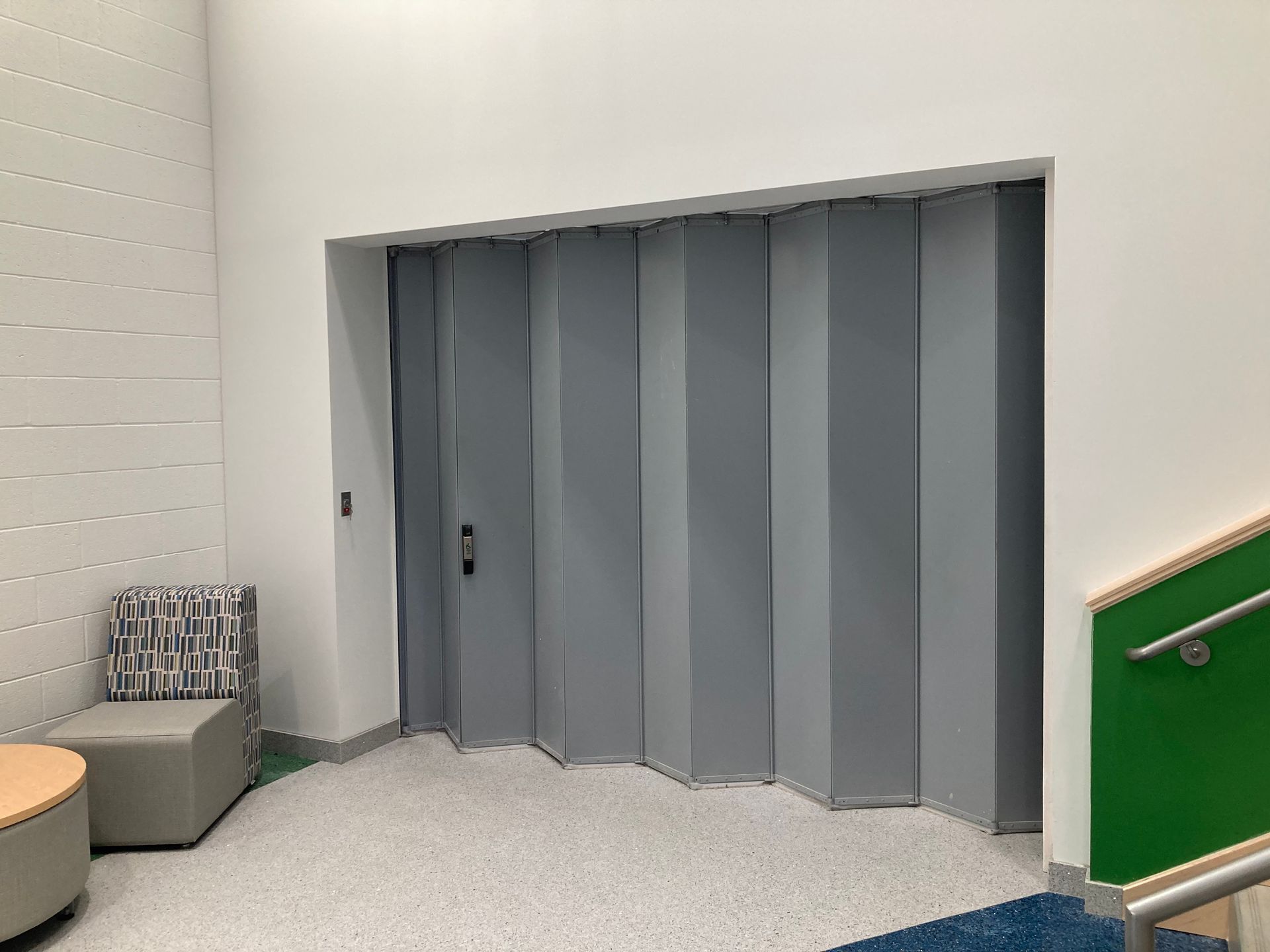

AC8800CP Details
Limited side and head room conditions are the perfect applciations for this model. Egress through the assembly is provided by the push paddle egress device. CAD files are available upon request.
Push Paddle Egress
Push paddle egress device - Easily recognizable and ADA compliant; doesn’t require the use of a key or special knowledge to activate. This technology allows building occupants to exit any space with minimal effort.
Finish Ceiling Reveals
-

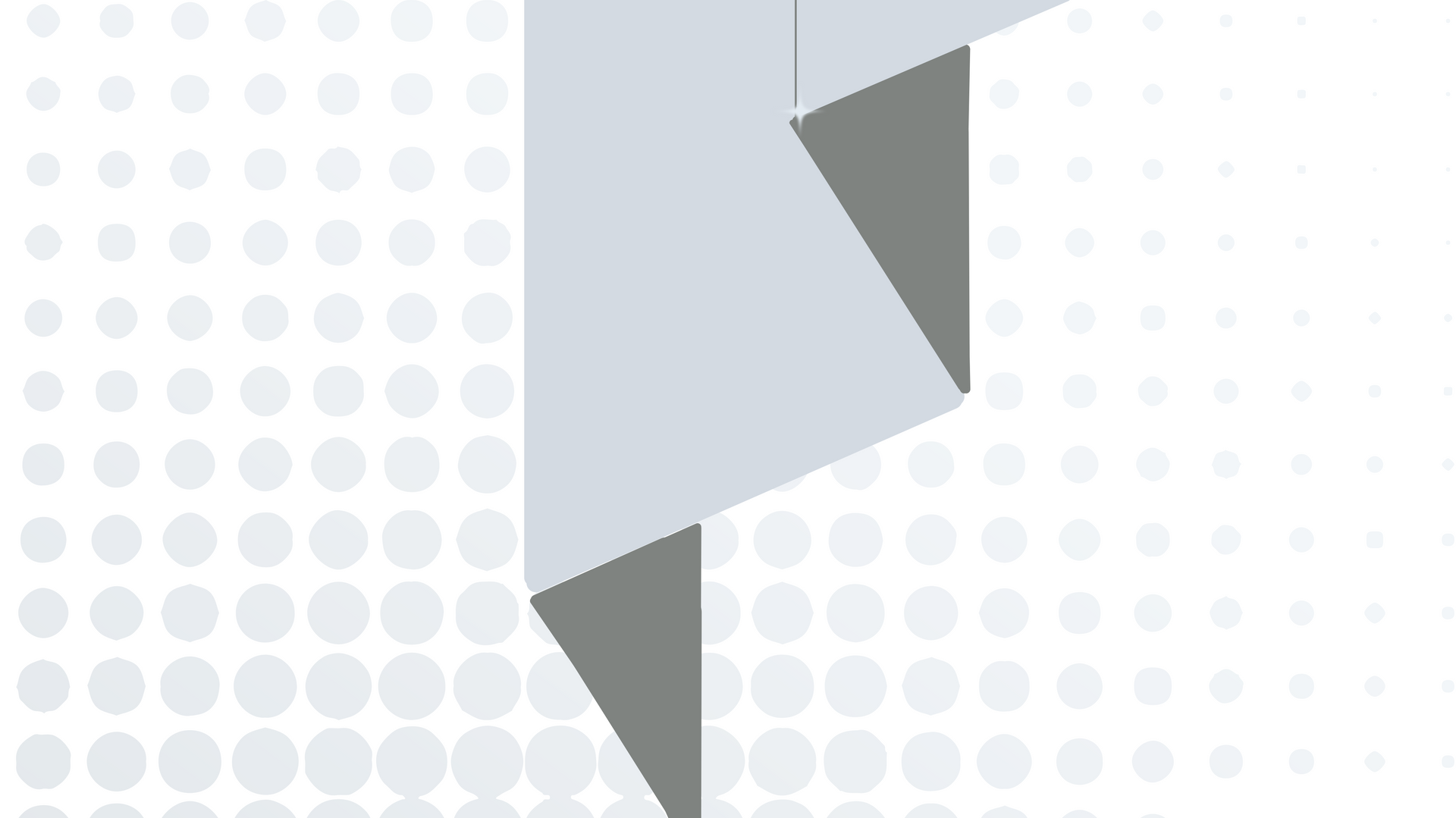

9" Headtrack

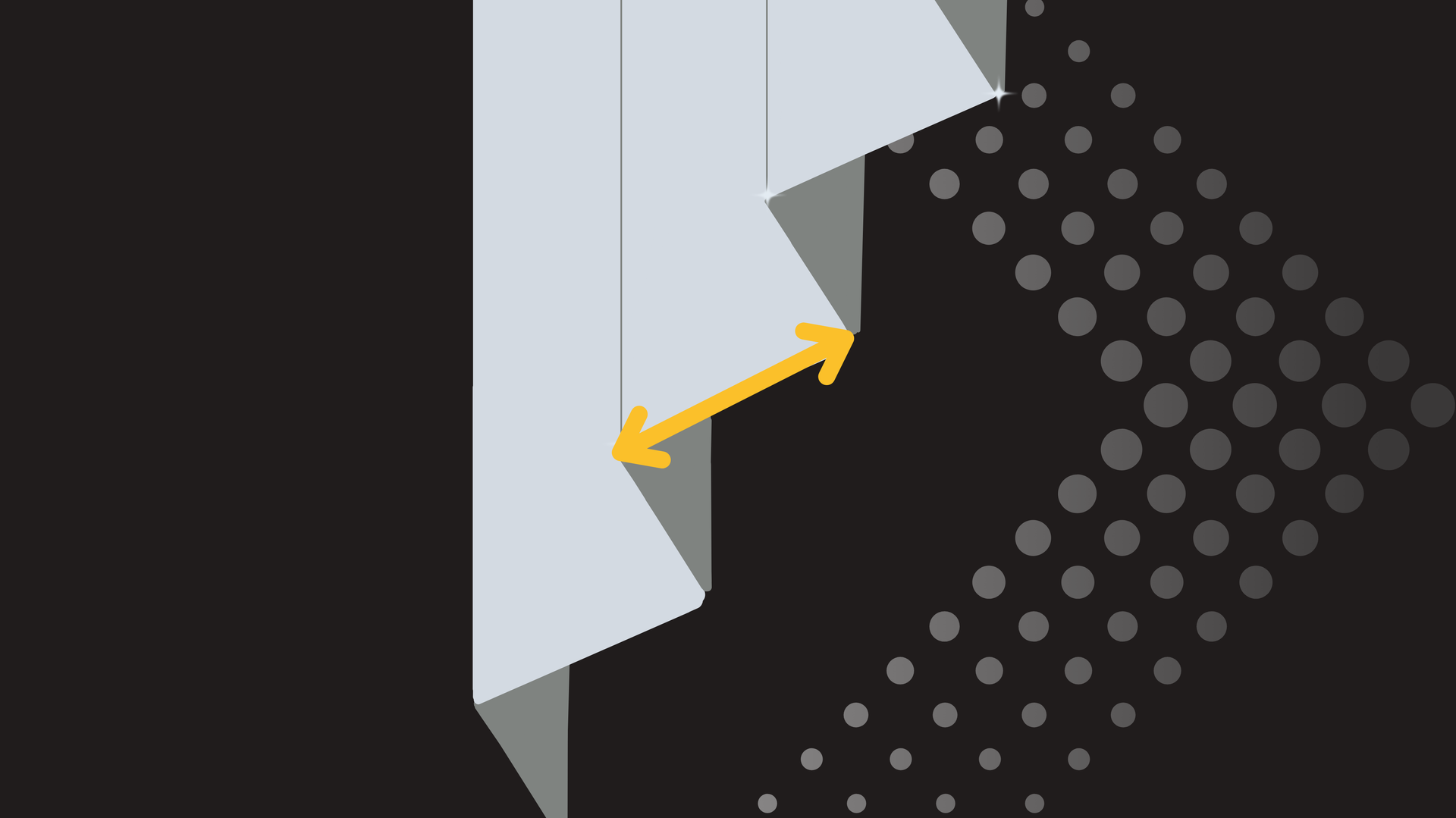

This head track comes with 7" panel size, which will provide a longer pocket depth, but smaller pocket width. Click below to see full list of products that are provided with this head track style.
-

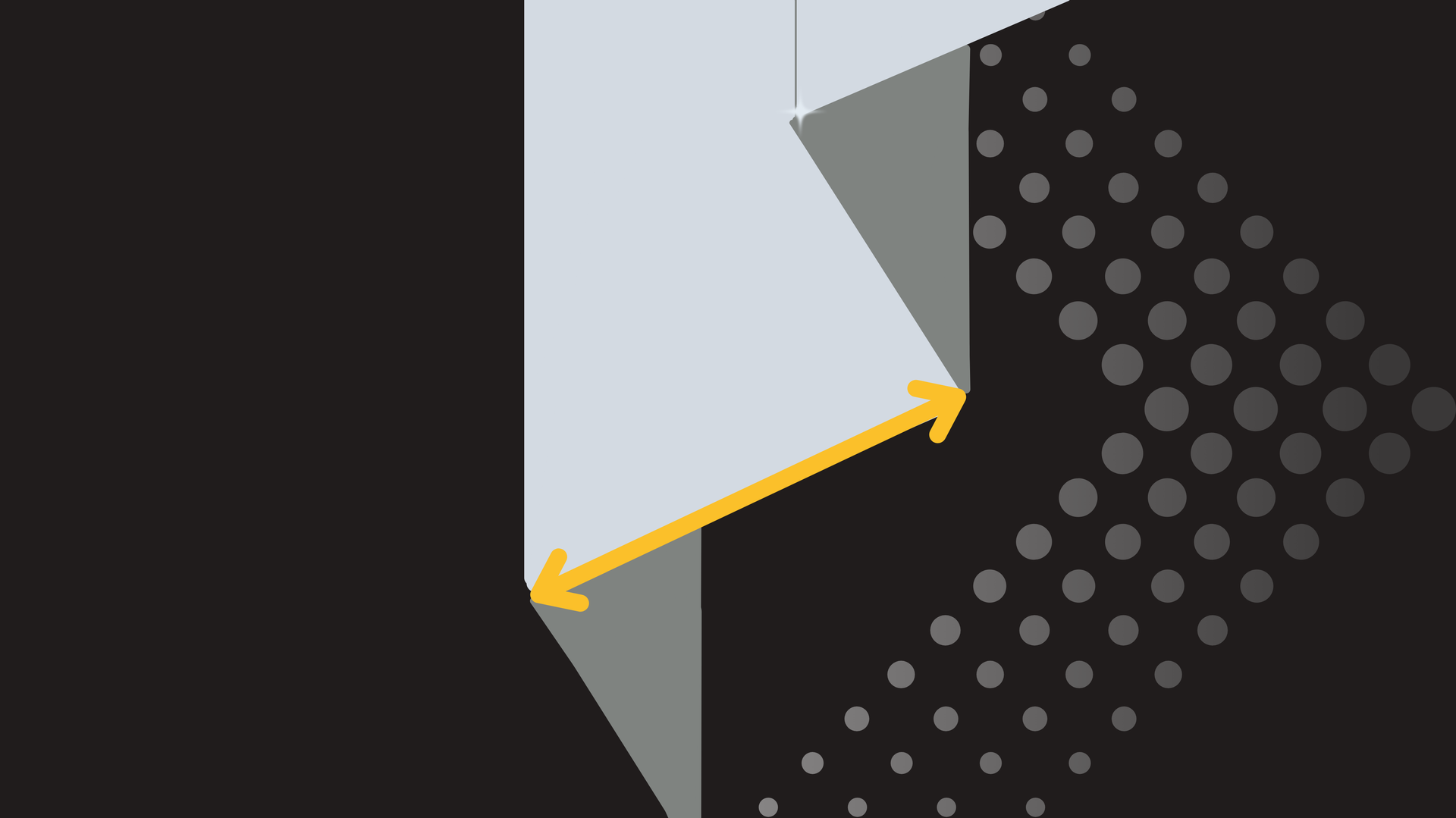

15-1/2" Headtrack
This head track comes with 14" panel size, which will provide a shorter pocket depth, but larger pocket width. Click below to see full list of products that are provided with this head track style.
-

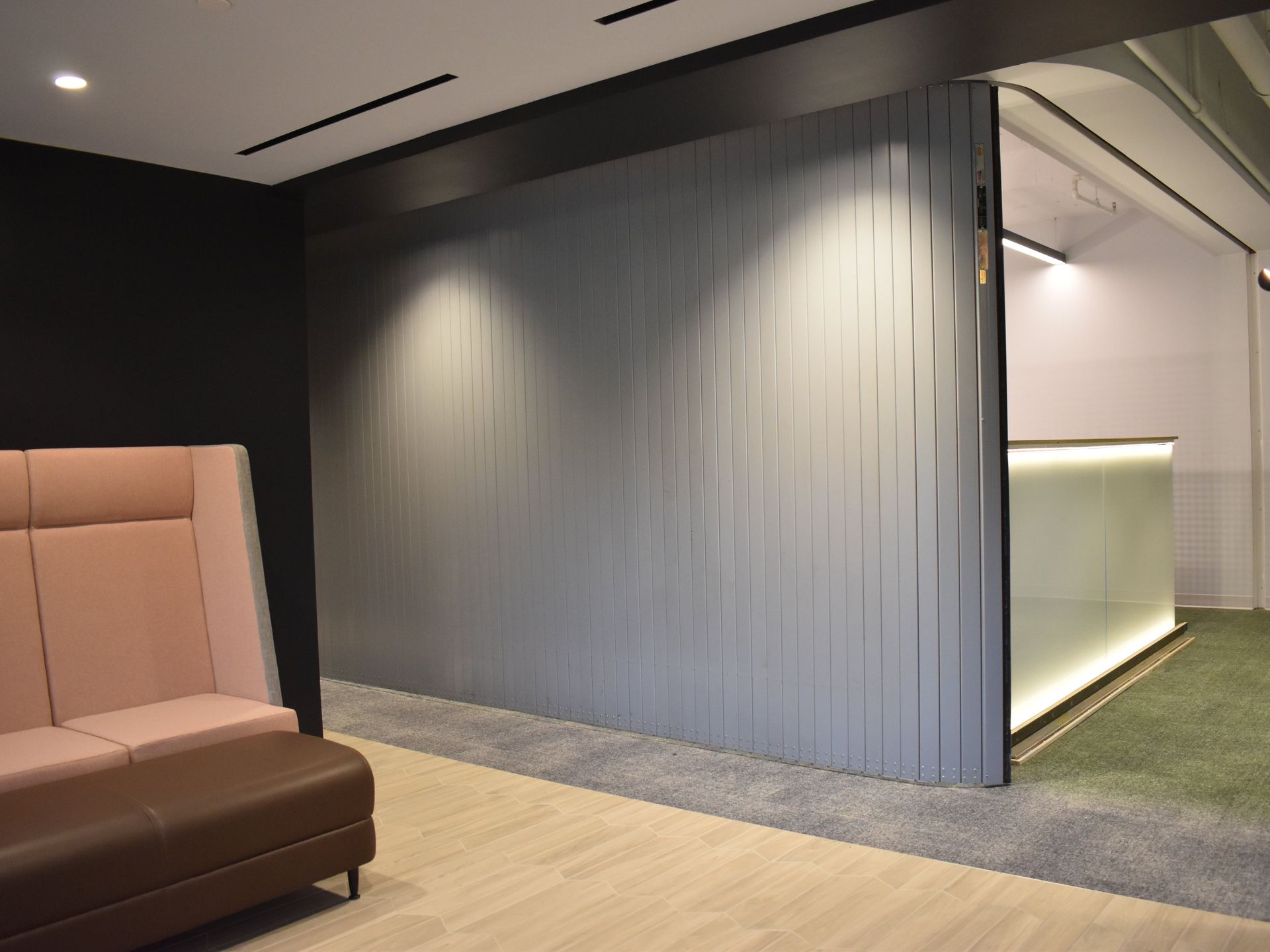

2-1/4" Headtrack (Alternate Product)
This head track profile is available on all side coiling and side sliding options. Click below to see full list of products that are provided with this head track style.
Finish Options
RAL Powder Coat Chart
Standard color selection is avaiaible with RAL Powder Coat spec selection.
